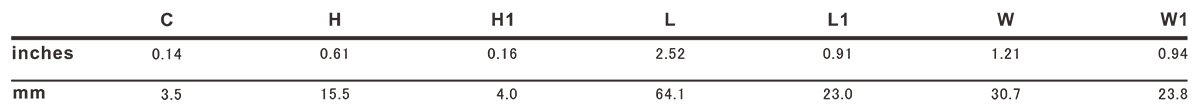

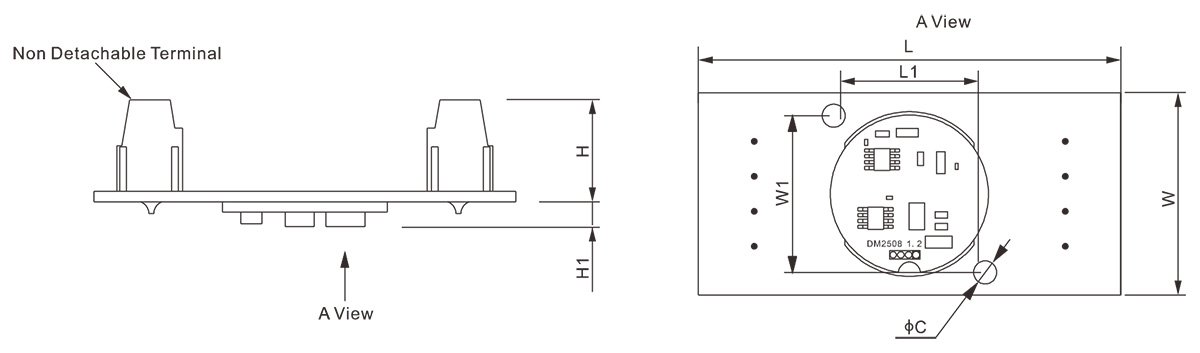

Dimensions

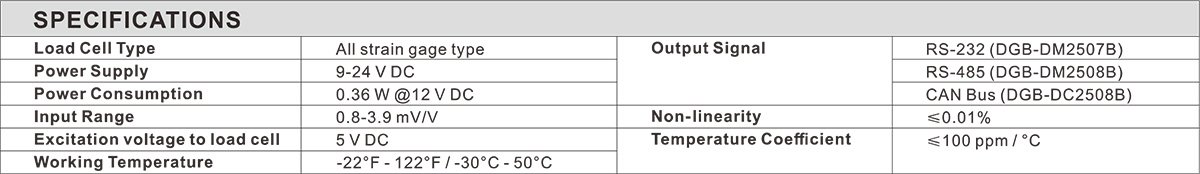

Specifications

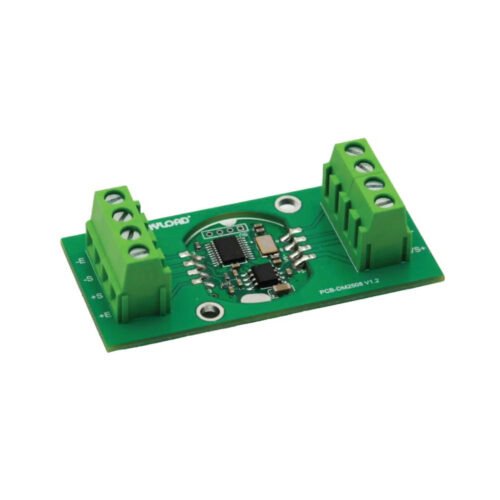

ANYLOAD / DGB-D / Amplifier
- One input port, can connect directly to 1×350Ω load cell, or max 4×350Ω (or higher resistance) load cells through a junction box
- 24 bit A/D Converter, high speed processor
- Internal digital filter and strong anti-interference ability
- Can perform up to 9 point linear calibration
- Applied to all kinds of strain gauge bridge-type load cell, such as, tension, compression, torque and so on
- Reverse polarity protection
- The chip is 24.6mm in diameter and can be embedded within load cells, making the load cells have built-in analog signal amplification
- Software is used for calibration
- DGB-D Chips can be integrated into load cells for built-in digital signal conditioning/transmission (special order required)
