Description

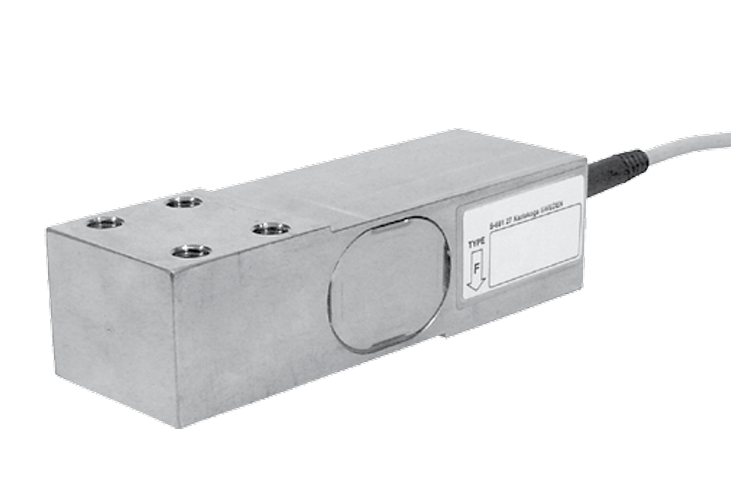

KIP-1 Web Tension Transducer
Features
Capacity 5, 10 and 20 kN
Withstand high overload
Robust design with low deflection
Small dimensions and easy installation
Application: Strip & Web Tension
Combined Error: 0.06-0.1 %
Environment Protection Class: IP67,IP66,IP65,IP54,IP20
Industry: Pulp & Paper
Material: Stainless Steel
Max Capacity: k lb: 0-25
Max Capacity: kN: 0-100
Max Capacity: ton: 0-10
Product Type: Weigh Modules & Load Cells,Force Transducers & Tension Measurement Modules
OUTLINE DIMENSIONS
Web Tension Transducer
INSTALLATION EXAMPLE
SPECIFICATIONS
| Parameter | Value |
|---|---|
| GENERAL PERFORMANCE | |
| Rated load (RL) | 10 and 20 kN |
| Combined error (terminal) | ±0.1% RO |
| Repeatability | 0.02% RO |
| Rated output (RO) | 1.020 mV/V |
| Tolerance of RO | ±0.25% RO |
| Zero balance | ±2% RO |
| LOADING | |
| Overload, safe | 100% RL (1) |
| Overload, ultimate | 200% RL (1) |
| ELECTRICAL | |
| Input voltage (recommended) | 10 VDC or VAC |
| Input voltage (maximum) | 18 VDC or VAC |
| Input resistance | 382 Ω ±3 Ω |
| Output resistance | 350 Ω ±3 Ω |
| Insulation resistance at 200 VDC | >4 GΩ |
| Electrical connection | 5 m shielded four-conductor cable |
| TEMPERATURE | |
| Temperature range | –40 to +80°C (+100°C) (2) |
| Temperature effect on output (–10°C to +50°C) | ±0.005% of output/°C |
| Temperature effect on zero balance (–10°C to +50°C) | ±0.005% of RO/°C |
| MECHANICAL / PROTECTION | |
| Material | Stainless steel |
| Degree of protection | IP67 |
(1) For load perpendicular to the transducer
(2) –40 to +100°C on demand BLH Nobel is continually seeking to improve product quality and performance. Specifications may change accordingly.
