Description

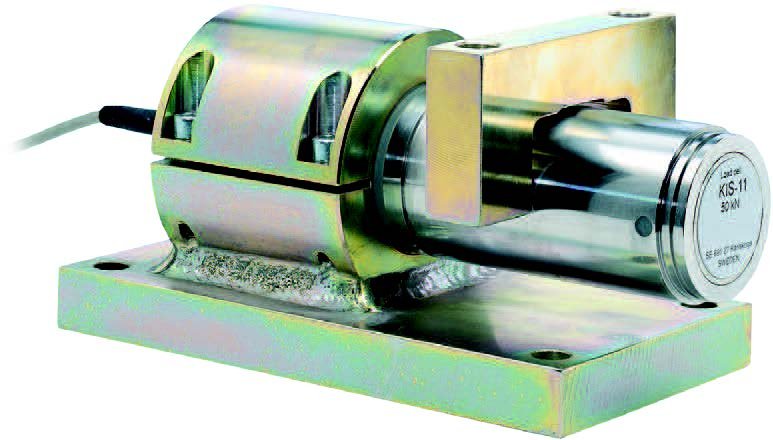

KIS-11 Load Cell/Weigh Module
Features
Capacity: 50, 100, 125 kN (11.2Klb)
Simple Installation
Moveable load point
Withstands very high lateral forces
Extremely accurate and rugged
ATEX/IECEx and OIML approval
Application: Process Weighing & Batching,Strip & Web Tension,Hazardous Areas
Certificates: ATEX,IECEx,OIML
Combined Error: 0-0.05 %
Environment Protection Class: IP67,IP66,IP65,IP54,IP20
Industry: Offshore,Metal,Mining,Pulp & Paper,Chemical,Pharmaceutical,Food & Beverage
Material: Stainless Steel,Plated Steel
Max Capacity: k lb: 25-115
Max Capacity: kN: 100-500
Max Capacity: ton: 10-50
Product Type: Weigh Modules & Load Cells,Force Transducers & Tension Measurement Modules
| RANGE
kN |
ØA | ØB | ØC | D | E | F | G | H | J | K | L | ØM | N | P | R | S | T |
| 50 | 77 | 75 | 70 | 291 | 93 | 65 | 141.3 | 12 | 5 | 2.65 | 2.65 | 9.1 | 14 | 7 | 110 | 20 | 60 |
| 100 | 92 | 90 | 82 | 315 | 107 | 65 | 155.4 | 15 | 6 | 2.65 | 3.15 | 12.6 | 17 | 8 | 120 | 20 | 70 |
| 125 | 92 | 90 | 82 | 315 | 107 | 65 | 155.4 | 15 | 6 | 2.65 | 3.15 | 12.6 | 17 | 8 | 120 | 20 | 70 |
| 200 | 101 | 100 | 90 | 343 | 130 | 65 | 175.8 | 15 | 6 | 3.15 | 3.15 | 15.7 | 17 | 8.5 | 128 | 20 | 80 |
OUTLINE DIMENSIONS IN MM Cont.
| RANGE
kN |
A | B | C | D | ØE | F | G | H | J | K | L | M | ØN | P | T | R | S |
| 50 | 280 | 150 | 30 | 152 | 16 | 115 | 245 | 65 | 45.5 | 115 | 150 | 72 | 18 | 30 | 30 | M16 | 43 |
| 100 | 310 | 170 | 40 | 173 | 22 | 130 | 270 | 65 | 63 | 126 | 160 | 85 | 22 | 40 | 26 | M20 | 50 |
| 125 | 310 | 170 | 40 | 173 | 22 | 130 | 270 | 65 | 63 | 126 | 160 | 85 | 22 | 40 | 26 | M20 | 50 |
| 200 | 340 | 180 | 50 | 199 | 25 | 140 | 300 | 65 | 71 | 146 | 190 | 95 | 25 | 49 | 32 | M24 | 57 |
Weigh Module
| SPECIFICATIONS | |
| PARAMETER | VALUE |
| PERFORMANCE | |
| Rated load (RL) | 50, 100, 125, 200 kN |
| Combined error (terminal) | ±0.02% RO |
| Repeatability | 0.01% RO |
| Safe load* | 200% RL |
| Ultimate load* | 300% RL |
| Safe sideload* | 100% RL |
| Ultimate sideload* | 200% RL |
| Input voltage, recommended | 10 VDC or VAC |
| Input voltage, maximum | 18 VDC or VAC |
| Input resistance | 350 Ω ±3 Ω |
| Output resistance | 350 Ω ±0.5 Ω |
| Rated output (RO) | 1.020 mV/V |
| Tolerance of RO | ±0.1% RO |
| Zero balance | ±1% RO |
| Tolerance of shunt calibration values | ±0.1% of value; actual output deined on unit calibration sheet |
| Creep at RL after 30 minutes | ±0.04% RL |
| Temperature range | –40 to +80°C
–40 to +100°C on demand |
| Temperature effect, on output (–10°C to +50°C) | ±0.0010% of output/°C |
| Temperature effect, on zero balance (–10°C to +50°C) | ±0.0014% of RO/°C |
| Insulation resistance at 200 VDC | >4 GΩ |
| Material: load cell | Stainless steel |
| Material: bracket and yoke | Yellow chromate steel, stainless steel as an option |
| Electrical connection | 10 m shielded four conductor cable |
| Degree of protection | IP67 |
| APPROVALS | |
| ATEX and IECEx certiied versions are available upon request. | |
* Referring to recommended loading point
BLH Nobel is continually seeking to improve product quality and performance. Speciications may change accordingly.
