The KOM-1 weigh module has a rugged and compact design and an accuracy, which makes it especially suitable for load and level monitoring in storage tanks. The sensing element consists of three sections. The two outer sections constitute supports and rest on the built-in block, which is secured to the base. On the middle section, which is the loadsensing part, there is a yoke to which the leg of the tank is secured. The sensor is efficiently locked so that it cannot twist in the built-in block.

Category:
Tag:
Brand:

Description

KOM-1 Weigh Module

Features
Suitable for load and level monitoring in storage tanks
Rugged design
ATEX/IECEx approved
Simple installation
Application: Process Weighing & Batching,Hazardous Areas
Certificates: ATEX,IECEx
Combined Error: 0.11-2 %
Environment Protection Class: IP67,IP66,IP65,IP54,IP20
Industry: Metal,Mining,Chemical,Pharmaceutical,Food & Beverage
Material: Stainless Steel,Plated Steel
Max Capacity: k lb: 25-115
Max Capacity: kN: 100-500
Max Capacity: ton: 10-50
Product Type: Weigh Modules & Load Cells

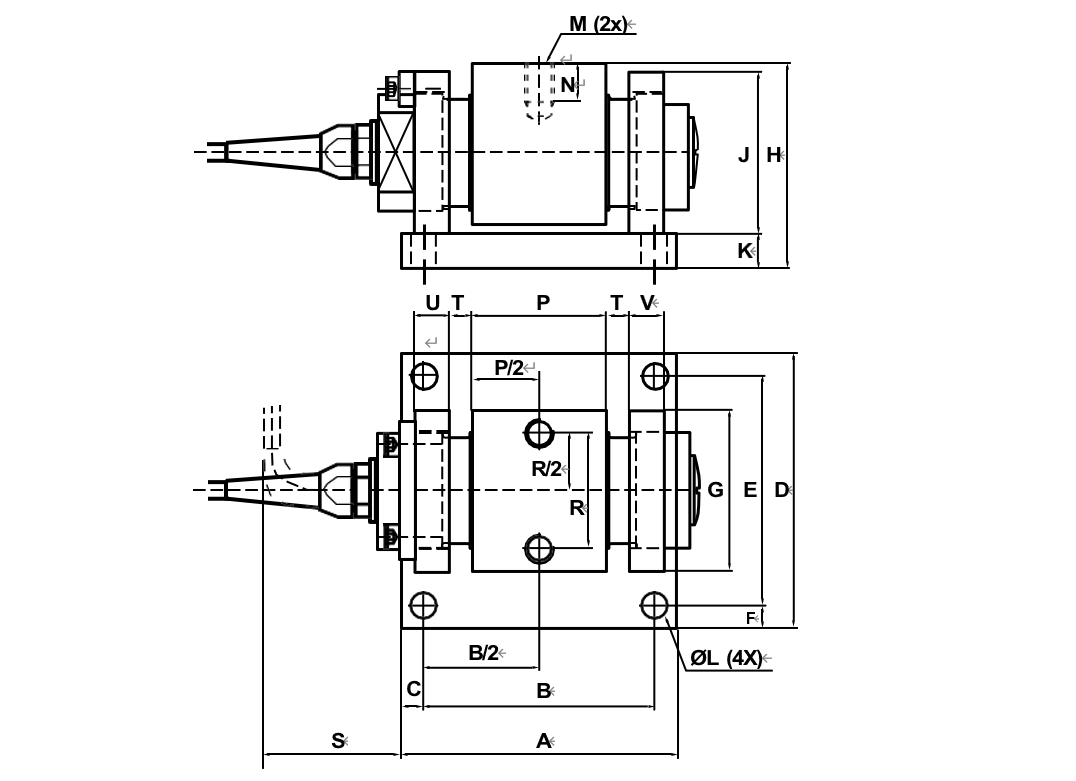

OUTLINE DIMENSIONS

RANGE

kN (lb)

 A B C D E F G H±1 J K 0

–1

 ØL M N P R S T U 0

–1

 V 0

–1
10-20-50 120 100 10 120 100 10 70 89 70 15 11 M12 18 33 50 47 10 15 15
100 120 100 10 120 100 10 70 89 70 15 11 M12 18 48 50 60 10 20 20
200 140 90 25 170 140 15 100 135 100 24 14 M16 28 48 70 50 10 30 20
500 250 200 25 250 200 25 160 190 150 28 22 M24 40 24 110 0 15 28 28

Weigh Module

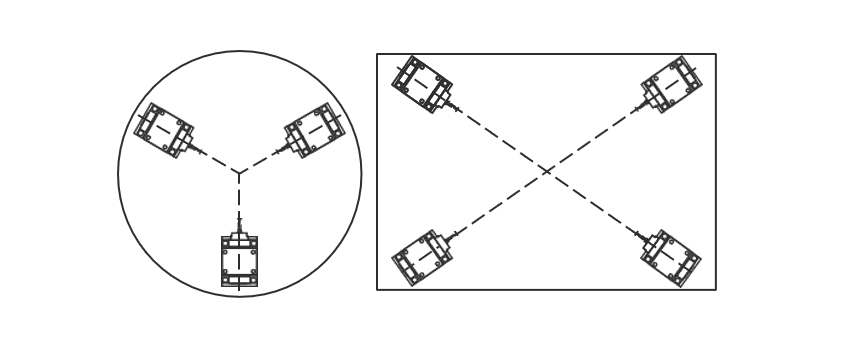

INSTALLATION EXAMPLES

SPECIFICATIONS
PARAMETER
Rated load (RL) 10, 20, 50, 100, 200, 500 kN
Combined error (terminal) ±0,25% RO (±0,5% RO 500 kN)
Repeatability 0.25% RO
Safe load* 200% RL
Ultimate load* 300% RL
Input voltage, recommended 10 VDC or VAC
Input voltage, maximum 18 VDC or VAC
Input resistance 350 Ω ±5 Ω
Output resistance 350 Ω ±5 Ω
Rated output (RO) 1 mV/V
Zero balance ±5% RO
Tolerance of shunt calibration values ±1% of value (actual output listed on unit calibration sheet)
Temperature range –40 to +80°C

–40 to +100°C upon request
Temperature effect on output ±0.04% of output/°C
Temperature effect on zero balance ±0.04% of RO/°C
Insulation resistance at 200V DC >4 GΩ
Material, load cell Stainless steel
Material, built-in block Yellow chromate steel, stainless on request
Electrical connection 5 m shielded four conductor cable 10, 20, 50 kN

10 m shielded four conductor cable 100, 200, 500 kN
Degree of protection IP67

* Referring to recommended loading point
BLH Nobel is continually seeking to improve product quality and performance. Speciications may change accordingly.
