Description
U3G2 Canister
Features
Capacity range: 500 to 100K lb (227 to 45K kg)
Compact
rugged
Operational: –30°F to +175°F
Low delection
Environmentally sealed
cFMus approved
Application: Process Weighing & Batching,Hazardous Areas
Certificates: cFMus
Combined Error: 0-0.05 %
Environment Protection Class: IP67,IP66,IP65,IP54,IP20
Industry: Metal,Mining,Pulp & Paper,Chemical,Pharmaceutical,Food & Beverage
Material: Painted Steel
Max Capacity: k lb: 25-115
Max Capacity: kN: 100-500
Max Capacity: ton: 10-50
Product Type: Weigh Modules & Load Cells,Force Transducers & Tension Measurement Modules

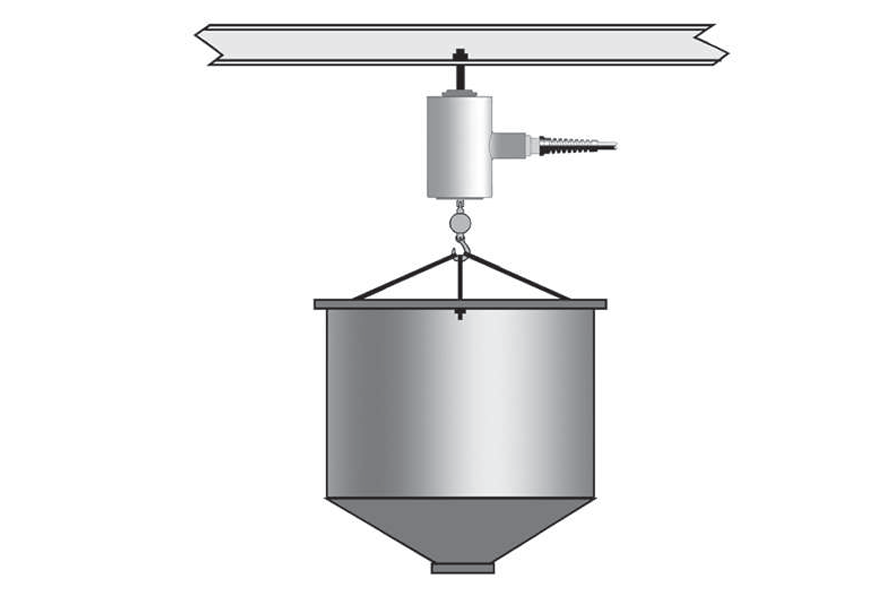

CONFIGURATION
Precision Force and Weight Measurement Canisters

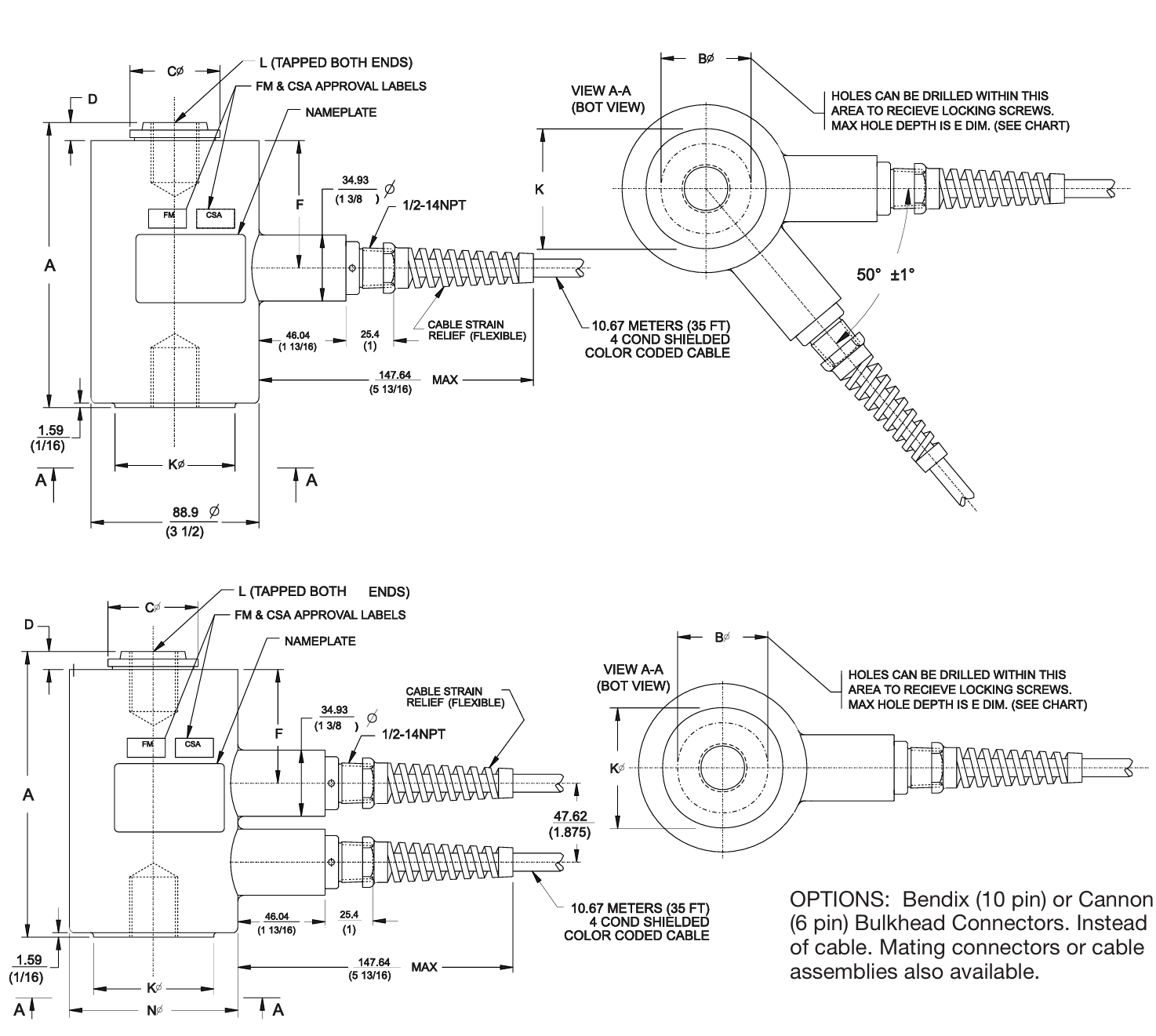

OUTLINE DIMENSIONS
| Capacity (lb) | A | B DIA. | C DIA. | D | E | F | K DIA. | L (TAPPED) | N DIA. |
|---|---|---|---|---|---|---|---|---|---|
| 500–3000 | 4 9/16 | — | 11/16 | 1/4 | — | 2 1/4 | 1 1/4 | 1/2-20 UNF-2B × 1/2 DP | — |
| 5000–10000 | 5 15/16 | 1 3/4 | 1 7/8 | 3/8 | 1/2 | 2 21/32 | 2 1/2 | 1-14 UNS-2B × 1 1/4 DP | — |
| 20000–30000 | 8 1/2 | 2 5/8 | 2 3/4 | 1/2 | 1 | 3 13/32 | 4 | 1 1/2-12 UNF-2B × 1 3/4 DP | 5 |
| 50000 | 11 7/16 | 3 3/4 | 4 | 5/8 | 1 | 4 15/32 | 5 3/4 | 2-12 UN-2B × 2 1/4 DP | 6 1/2 |
| 100000 | 17 3/4 | 4 3/4 | 5 1/2 | 1 1/8 | 1 | 7 3/8 | 7 3/4 | 3-8 UN-2B × 4 1/2 DP | 9 |
| Capacity (lb) | Weight (lb) | Deflection (in.) | Natural Frequency @ Effective Weight (Hz/lb) |
|---|---|---|---|
| 500 | 6 | 0.007 | 1250 / 0.45 |
| 1000 | 6 | 0.006 | 1800 / 0.50 |
| 2000–3000 | 6 | 0.005 | 2600 / 0.56 |
| 5000 | 10 | 0.007 | 2200 / 1.5 |
| 10000 | 10 | 0.005 | 3400 / 1.7 |
| 20000 | 25 | 0.007 | 2400 / 5 |
| 50000 | 70 | 0.010 | 1900 / 15 |
| 100000 | 200 | 0.013 | 1350 / 43 |
Precision Force and Weight Measurement Canisters
SPECIFICATIONS
| Category | Parameter | Type U3 | Type T3 |
|---|---|---|---|
| PERFORMANCE | Capacities | 500 ~ 100K lb (227 ~ 45.4K kg) | 동일 |
| Rated Output (RO) | 3 mV/V –0.25% | 3 mV/V ±0.1% | |
| Non-Linearity | 0.10% RO | 0.05% RO | |
| Hysteresis | 0.02% (1–100K lb)0.05% (500 lb) | 0.02% (1–50K lb)0.05% (500 lb) | |
| Repeatability | 0.02% RO | 0.02% RO | |
| Creep (20 min.) | 0.03% RO | 0.03% RO | |
| Variance Ten. – Cmp | 0.015 mV/V max. | N/A | |
| ELECTRICAL | Recommended Excitation | 10 VAC / VDC | 10 VAC / VDC |
| Zero Balance | 1.0% RO | 1.0% RO | |
| Input Resistance | 350 Ω ±3.5 Ω | 350 Ω ±3.5 Ω | |
| Output Resistance | 350 Ω ±3.5 Ω | 350 Ω ±3.5 Ω | |
| Number of Bridges | Single / Double | Single / Double | |
| Insulation Resistance (Bridge → Ground) | 5000 MΩ @50VDC | 5000 MΩ @50VDC | |
| Insulation Resistance (Shield → Ground) | 2000 MΩ @50VDC | 2000 MΩ @50VDC | |
| Electrical Connection | 10 ft or 35 ft cable | 10 ft or 35 ft cable | |
| TEMPERATURE | Safe Range | –30 to +175 °F | 동일 |
| Compensated Range | +30 to +130 °F | 동일 | |
| Effect on Zero Balance | 0.0015% RO / °F | 동일 | |
| Effect on Rated Output | 0.005% load / °F | 0.0008% load / °F | |
| ADVERSE LOAD | Safe Overload | 150% RO | 150% RO |
| Max Overload | 300% RO | 300% RO |
BLH Nobel is continually seeking to improve product quality and performance. Speciications may change accordingly. Appearance may differ from picture.
