Description

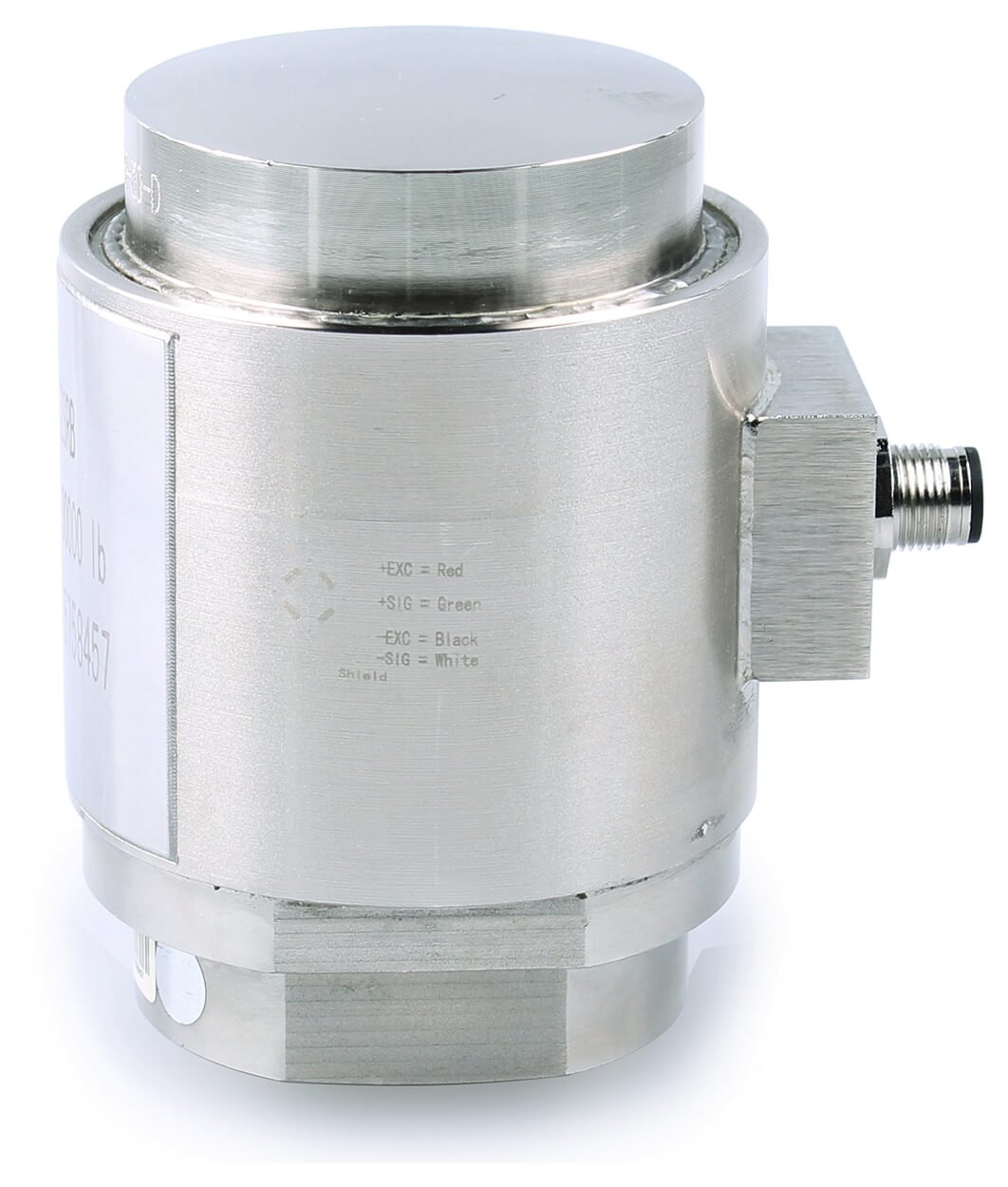

Compressive force – Load cell C30S

The pendulum cell C30S is made of alloyed steel, and is one of the compression load cells. Due to its balanced radial geometry, the rocker pin has a precisely defined, self-righting function.

Area of application

Hopper scales, silos, bunkers of harvesting machinery, seed drills, biomixers and weighbridges

Features

• Material: alloyed steel
• Nominal load: 30 – 50 klb
• Structure: Self-centring single-column load cell, the measuring element is hermetically encapsulated – laser-welded
• Temperature compensated
• Particularly robust for long-term use in industrial applications

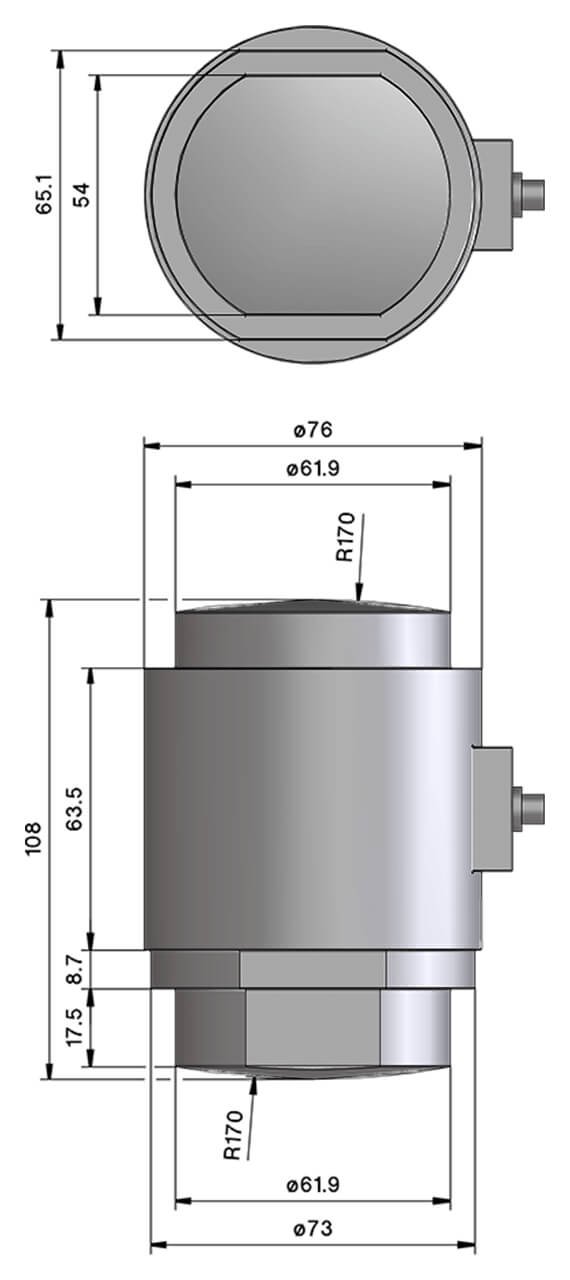

Drawing

All specifications in mm | Subject to technical changes

Versions
