Description

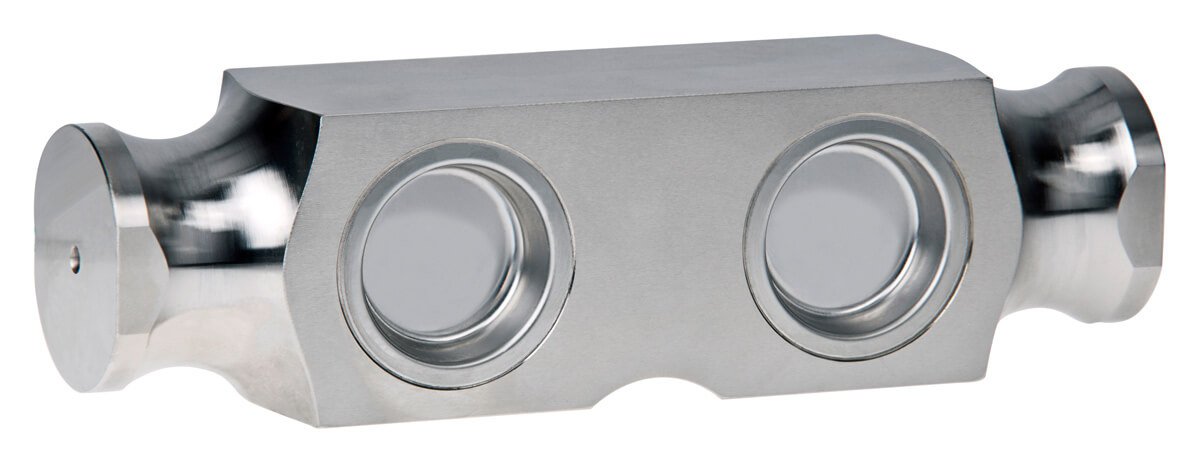

Double Ended Shear Beam load cell D20S

The D20S are end loaded, centre supported dual shear beam load cells. By the parallel load introduction with central support this load cell is largely resistent to off-axial or side loading. They are manufactured from alloy steel and characterized with high accuracy and linearity. These load cells guarantee accurate and reproducible results over a long term in harsh industrial environments. The load cell is laser-welded and meets the requirements of protection class IP65. Nickel plated and full enviromental sealing guarantee allows operation even under harsh operating conditions.

Typical Application

Rail scales, Truck scales, Weigh bridges and other weighing devices

Features

• Material: alloy stee, nickle plated
• Capacity: 13.607 kg – 34.091 kg
• Accuracy class 0,03
• Design: The measuring element is hermetically sealed and has a calibrated output current
• Protection class: IP65
• Parallel load introduction with central support
• Robust design for harsh industrial environment
• Compatible with other sources
