Miniature Load Cell F13N

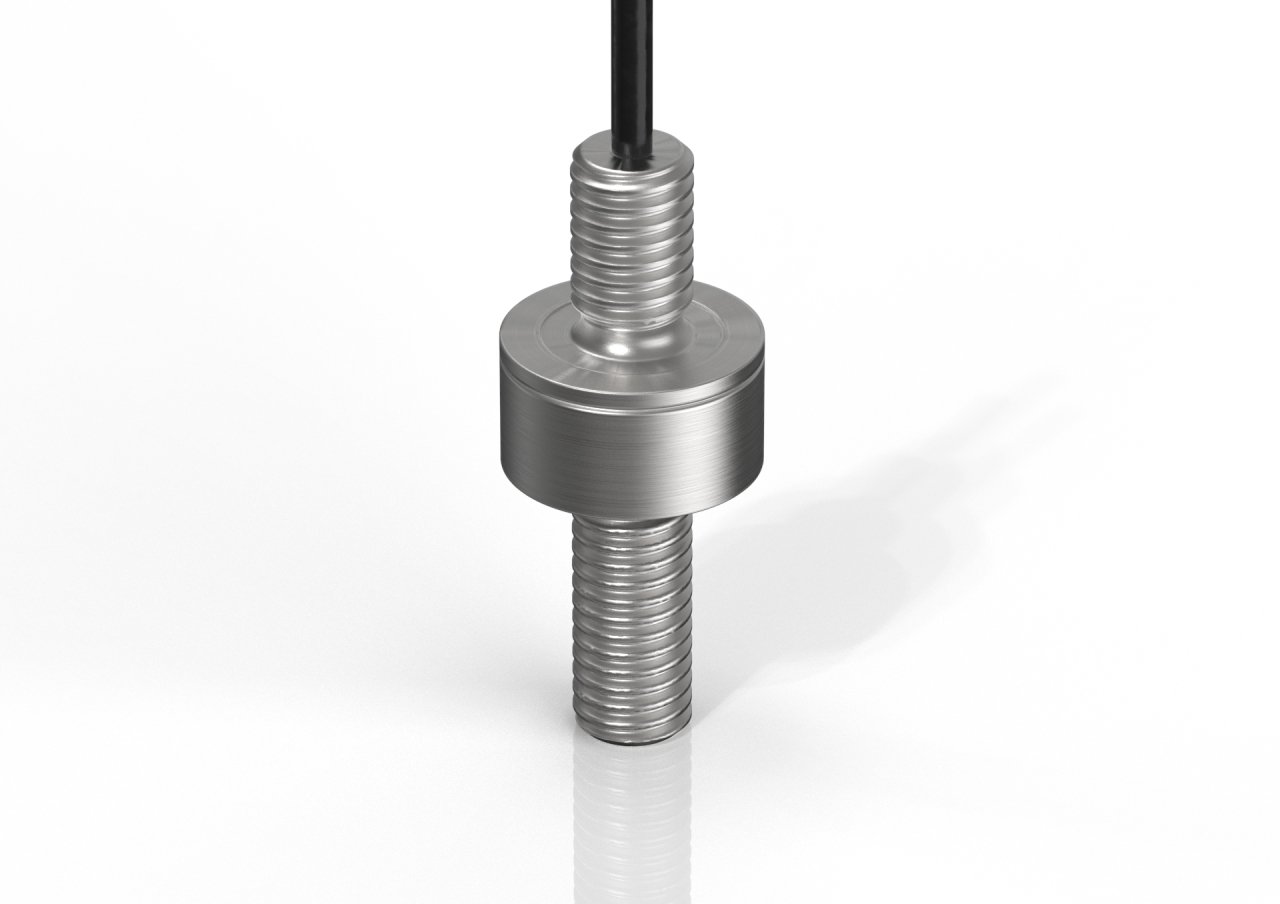

The F13N is a miniature force sensor / force transducer made of stainless steel, also known as a load cell. The compact inline pressure and tensile force sensor is manufactured with its own strain gauge technology and is designed for several nominal loads / nominal forces (490,5 N – 4905 N => 50 kg – 500 kg) and can be calibrated in kilograms or newtons. As standard, the force sensor has two threads for the introduction of force, which must be free of transverse forces and bending moments. The measuring body is made of stainless steel, the strain gauge is encapsulated and meets the requirements of protection class IP65.
Scope of application
When used as a force transducer, force measurement.
Features of the force sensor
- Tensile and compression load cell
- Material: sensor body made of stainless steel
- Nominal load: 50 kg – 500 kg
- Accuracy class: 1 %
- Assembly: Force introduction by means of 2 x 8 mm external thread M6 / M8
- Construction: The measuring element is encapsulated, protection class: IP65
- Compatible with other manufacturers
Mounting
The miniature rod force sensor is screwed on via two external threads at the top and bottom.

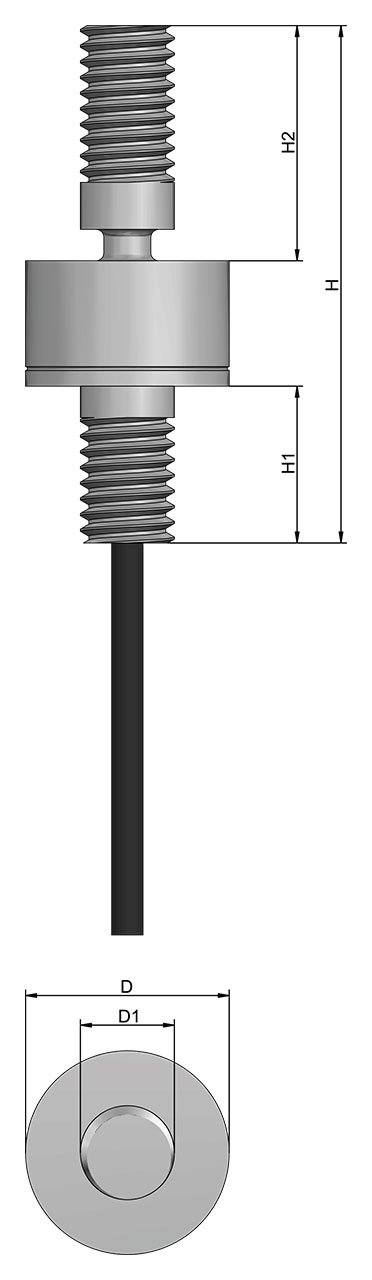

Drawing
| Load | H | H1 | H2 | D | D1 |
|---|---|---|---|---|---|
| 50 kg-100 kg | 33 | 10 | 15 | 13 | M6 |
| 200-500 kg | 33 | 10 | 10 | 13 | M8 |
All specifications in mm | Subject to technical changes
Variants of the load cells
| Typ | Nominal load, Emax | Accuracy |
|---|---|---|
| F13N-050 | 50 kg | 1% |
| F13N-100 | 100 kg | 1% |
| F13N-200 | 200 kg | 1% |
| F13N-500 | 500 kg | 1% |
