Description
Pressure force – load cell C36S
The C36S load cells belong to multiple columns pressure force load cells and they are the classics of weighing technology. Due to the special four-column technique, the load cell is largely insensitive to eccentric loads. The load cell C36S provides even in long-term use in harsh industrial environments, highly accurate and reproducible measurement results. The Rocker has because of the agreed radii geometries a well-defined self-righting function
Applications
hopper scales, silo scales , as well as force measurements in the process industry.
Features
- Material: Alloy Steel
- Rated load: 20-100 t
- Protection class: IP65 – laser welded
- Structure: the measuring element is laser-welded
- Load introduction: Spherical load application knob / pad with centering
- Particularly robust for heavy duty industrial use

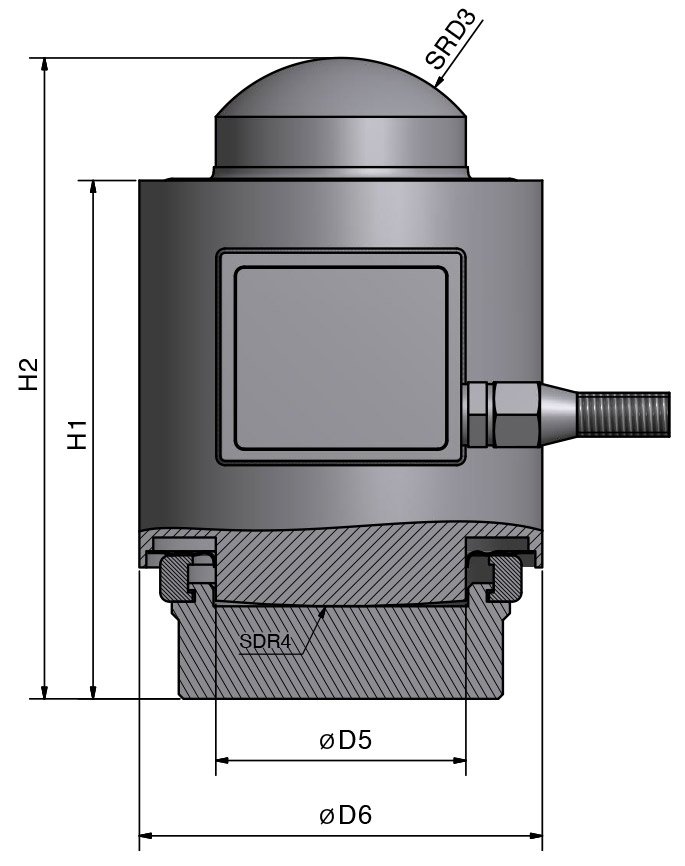

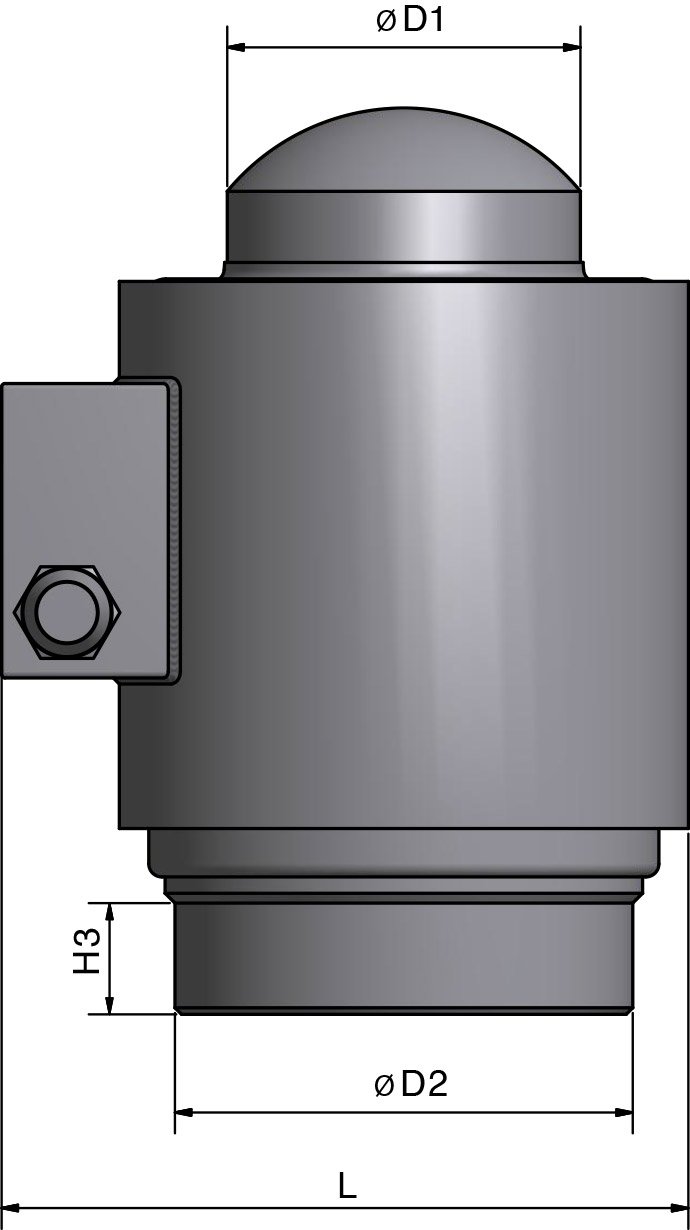

Drawing
| Load (t) | D1 | D2 | D3 | D4 | D5 | D6 | H1 | H2 | H3 | L |
|---|---|---|---|---|---|---|---|---|---|---|
| 20, 25, 30, 50, 60 | 54 | 70 | 35 | 220 | 54 | 87 | 112 | 138,5 | 17 | 105 |
| 75, 100 | 76 | 105 | 50 | 300 | 76 | 120 | 167 | 200 | 37 | 138 |
Mounting
Versions
| Type | Nominal load, Emax | Accuracy class |
|---|---|---|
| C36S-C3-20000 | 20.000 kg | C3 |
| C36S-C3-30000 | 30.000 kg | C3 |
| C36S-C3-30000 | 40.000 kg | C3 |
| C36S-C3-50000 | 50.000 kg | C3 |
