Shear beam load cell K20N

The K20N shear beam load cells are among the most commonly used sensors in weighing technology. The load cells are made of high-alloy stainless steel and are characterised by high accuracy and linearity. The K20N load cells can be calibrated to 3000D according to OIML R60 and ensure extremely accurate and reproducible results even after long-term use in harsh industrial environments. The load cells are output-current-calibrated as standard, which allows the simple and accurate parallel connection of several load cells. The shear beam load cell is laser-welded and fulfils the requirements of protection class IP65.

Area of application

Larger platform scales, floor scales, hopper scales, silo scales, big-bag scales, check-weighers and also for force measurements in the testing systems and process industry.

Features

• Material: Stainless steel
• Nominal load: 1,000 – 5,000 kg
• Accuracy class C3, Y=8,000
• Calibratable in compliance with OIML R60 to 3000D; test certificate number: DK0199-R60-12.22
• Hermetically encapsulated – laser-welded, protection class: IP65
• Structure: The measuring element is hermetically encapsulated and output current calibrated
• Particularly robust for long-term use in industrial applications
• Force transmission via blind hole
• Compatible with other manufacturers

Mounting example

Load introduction with ball bearing

Load introduction with self-aligning bearing

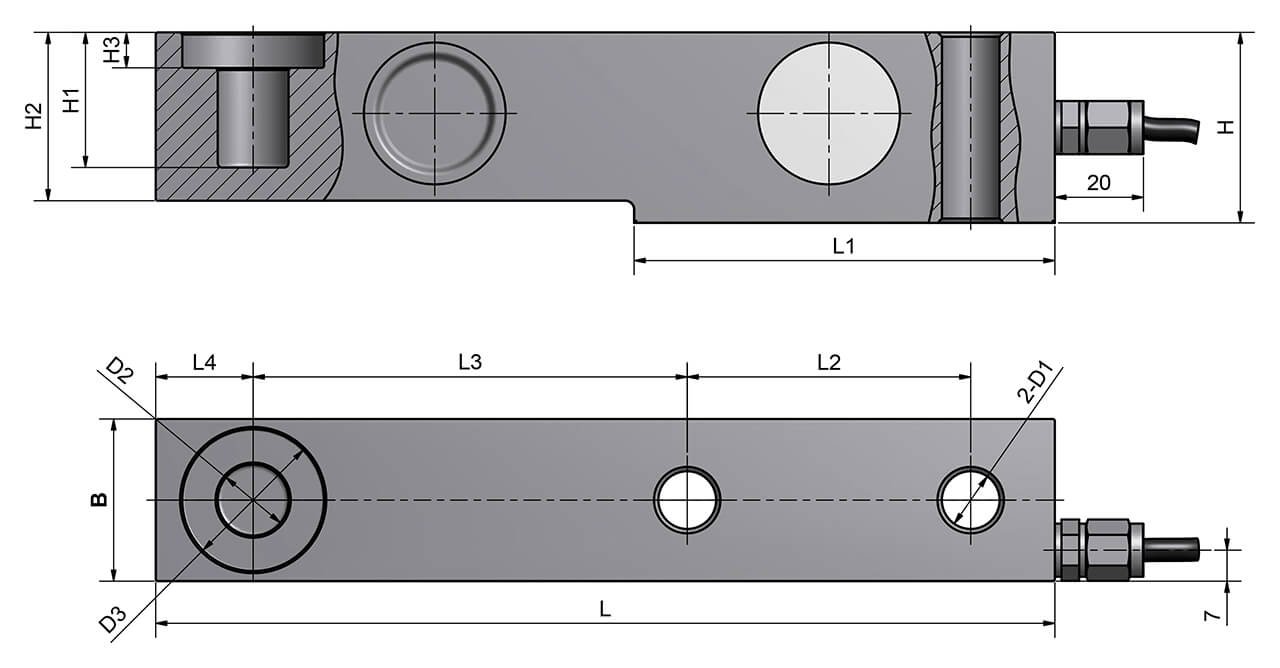

Drawing

All information in mm | Technical changes reserved
