Single point load cell H30A

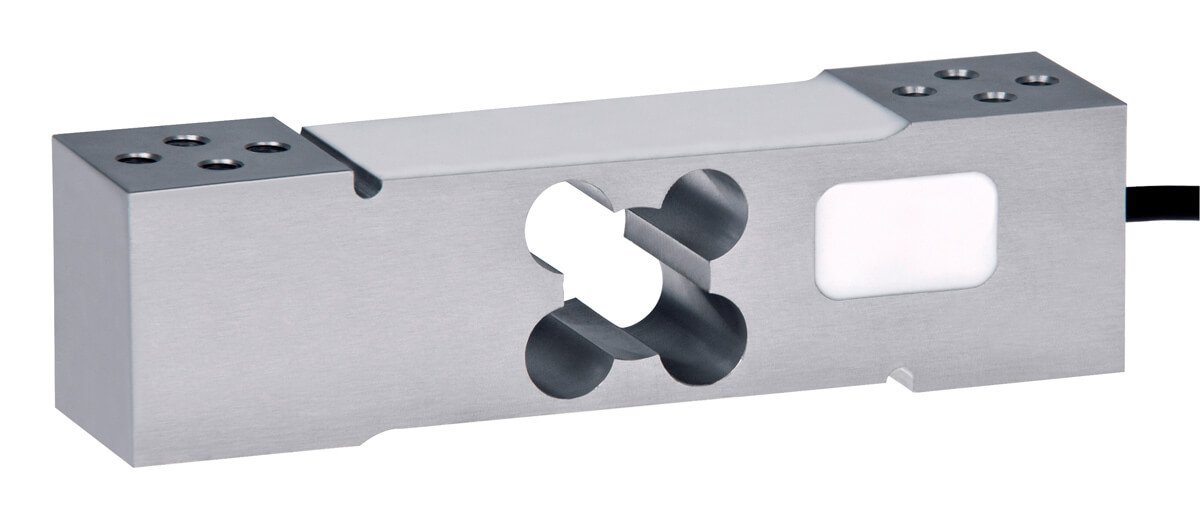

The H30A is a single point load cell made from Aluminium. The load cell is suitable for bench scales, platform scales and weighing machines with accuracy class III.  The load cell H30A is approved to OIML R60 up to 3000 and gives extremely accurate reproducible results, over a long term even in harsh industrial environments. Each individual load cell H10A is corner adjusted and optimised for out of center load sensitivity. This ensures that there will be no measurement error when the load is placed off centre, eg in a corner of a platform.
The load cell is potted and meets the requirements of protection class IP65.Anwendungsbereich

Typical Application

Bench scales, Counting scales, Platform scales, Wending machines, Industrial filling and dosing processes, medical scales and pharmaceutical process

Features

• Material: Aluminium
• Capacity: 15 – 300 kg
• Accuracy class C3, Y=7.500
• Approved to OIML R60 up to 3000d
• Design: The measuring element is potted
• Protection class: IP 65
• Off center load compensated
• Load Cell is suitable for platform sizes up to 300 x 400 mm (15~50 kg); 500 x 600 (100~300 kg)
• Robust design for harsh industrial environment
• Compatible with other sources

Mounting

The construction of a platform scale with this load cell is very easy. Two steel or aluminum plates of up to 400 x 400 mm are screwed onto the two screw-on surfaces at the top (front) and rear (bottom) at the cable outlet.

Drawing

All specifications in mm | Subject to technical changes
