Description

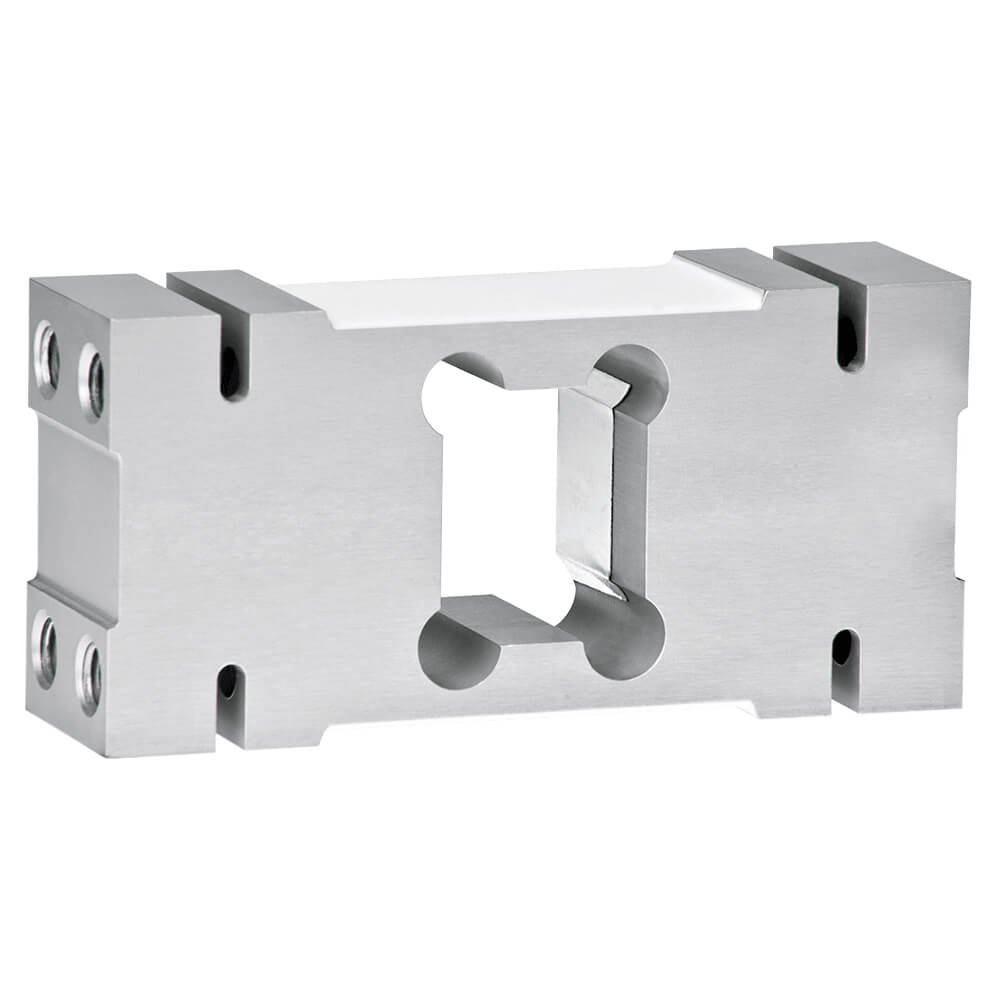

Single point load cell H50A

The H50A is a single point load cell made from Aluminium. The load cell is suitable for large platform scales up to 1200 x 1200 mm with accuracy class III.  The load cell H50A is approved to OIML R60 up to 3000d and gives extremely accurate reproducible results, over a long term even in harsh industrial environments.
The load cell is potted and meets the requirements of protection class IP65.

Typical Application

Large platform scales, wall scales, bin lift weighing, belt weighing, check weighing and bag filling and weigh industrial waste containers.

Features

• Material: Aluminium
• Capacity: 50 – 2.000 kg
• Accuracy class C3, Y=7.000
• Approved to OIML R60 up to 3000d
• Design: The measuring element is potted
• Protection class: IP 65
• Load Cell is suitable for platform sizes up to 600 x 600 mm (50-200 kg), 600 x 800 mm (250-500 kg) and 1200 x 1200 mm (750-2000 kg)
• Robust flat design for harsh industrial environment
• Compatible with other sources

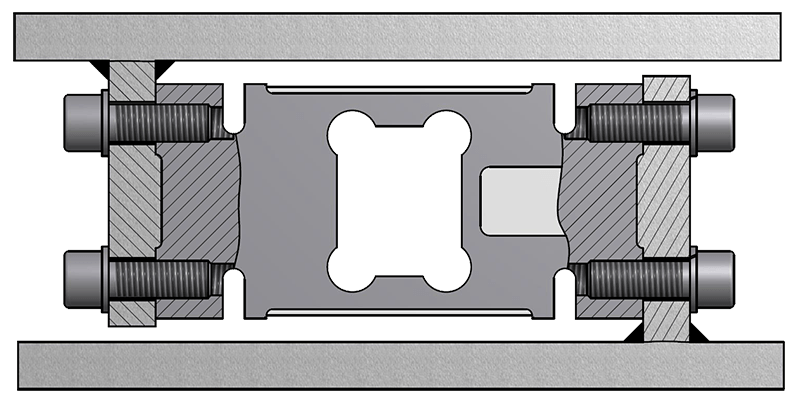

Mounting

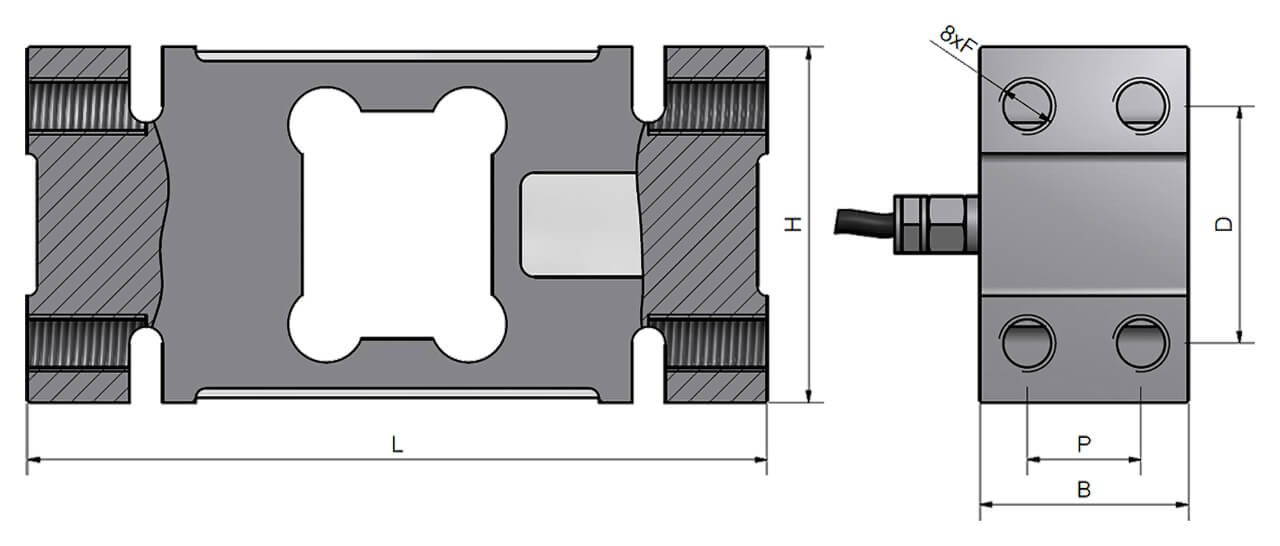

Drawing

Versions
