The Model SEB is a single-ended shear beam load cell designed for multiple cell applications, such as low proile platform or small tank scales, when used with proper mounting accessories. It is insensitive to side loading and capable of reversed loading. The Model SEB is constructed of alloy steel and fully potted with special chemical compounds to IP67 to protect the cell from water and moisture damage.

Category:
Tag:
Brand:

Description

SEB Single-Ended Beam

FEATURES

  • Capacities: 500 kg, 1 t, 1.5 t, 2 t, 2.5 t
  • High side-load tolerance
  • Electroless nickel-plated alloy tool steel
  • OIML C3 approval (500 kg ~ 2.5 t)
  • Optional – FM approval available

APPLICATIONS

  • Truck / Rail scales
  • Silo / Hopper / Tank weighing
  • Platform scales (multiple load cells)
  • Pallet truck scales
  • Packaging machines

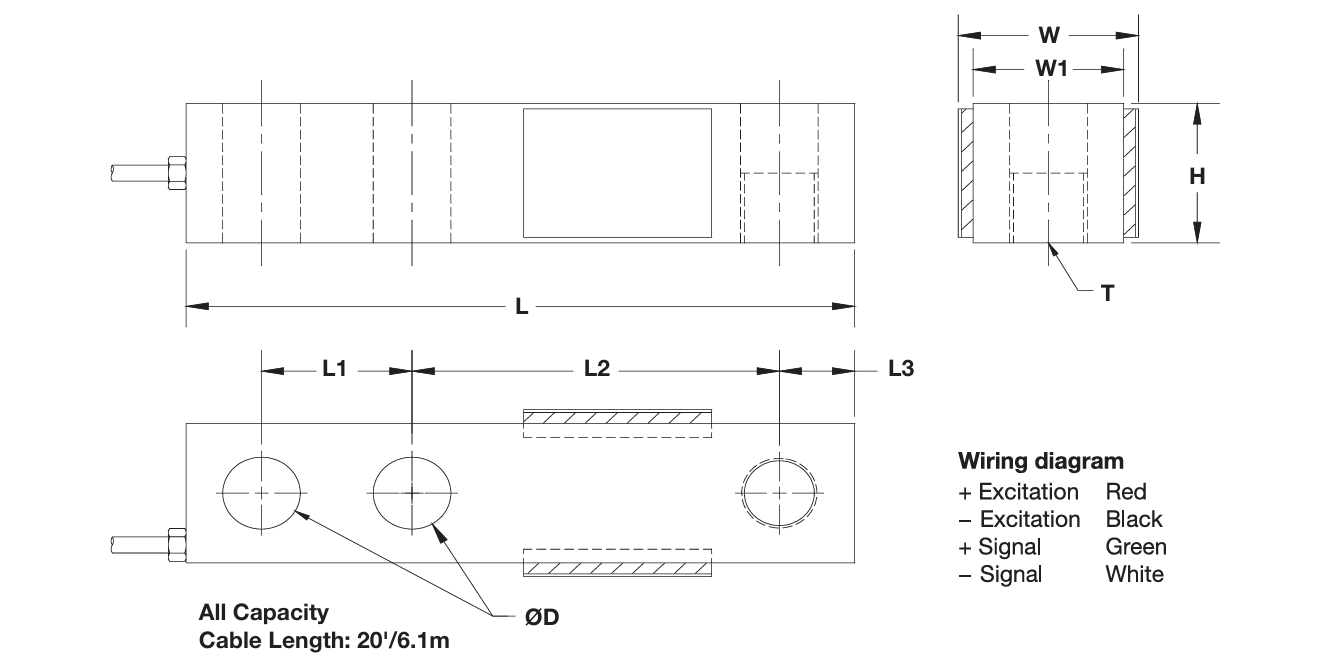

OUTLINE DIMENSIONS

Capacity Unit L L1 L2 L3 W W1 H D T
500 kg / 1 t / 1.5 t / 2 t mm 130.0 25.4 76.2 12.7 38.1 31.2 31.2 13.5 M12 × 1.75
500 kg / 1 t / 1.5 t / 2 t inch 5.12 1.00 3.00 0.50 1.50 1.25 1.25 0.53 —
2.5 t mm 171.5 38.1 95.3 19.0 44.2 38.1 38.1 19.8 M20 × 1.5
Category Parameter Value Unit
APPROVAL NTEP/OIML Accuracy Class C3 –
METROLOGY Maximum No. of Intervals (n) 3000 –
Y = Emax / Vmin 10000 –
CAPACITY Standard Capacities (Emax) 500, 1000, 1500, 2000, 2500 kg
PERFORMANCE Rated Output (R.O.) 3.0 mV/V
Rated Output Tolerance ±0.25 % of RO
Zero Balance ±1 % of RO
Non-linearity ±0.025 % of RO
Hysteresis ±0.025 % of RO
Non-repeatability ±0.020 % of RO
Creep Error (20 min) ±0.030 % of RO
Zero Return (20 min) ±0.030 % of RO
TEMP. EFFECT Temp. Effect on Min. Dead Load Output ±0.0014 % of RO / °C
Temp. Effect on Sensitivity ±0.0008 % of Load / °C
TEMPERATURE Compensated Range –10 to +40 °C
Operating Range –20 to +60 °C
LOAD RATING Safe Overload 150 % of R.C.
Ultimate Overload 300 % of R.C.
ELECTRICAL Excitation (Recommended) 10 VDC / VAC RMS
Excitation (Maximum) 15 VDC / VAC RMS
Input Impedance 385 ±5 Ω
Output Impedance 350 ±3 Ω
Insulation Resistance >5000 MΩ
CONSTRUCTION Material Nickel-plated alloy steel –
PROTECTION Environmental Protection IP67 –

All speciications subject to change without notice.
FM Approval
Intrinsically Safe: Class I, II, III; Div. 1 Groups A-G
Non-Incendive: Class I; Div. 2 Groups A-D

Reviews

There are no reviews yet.
