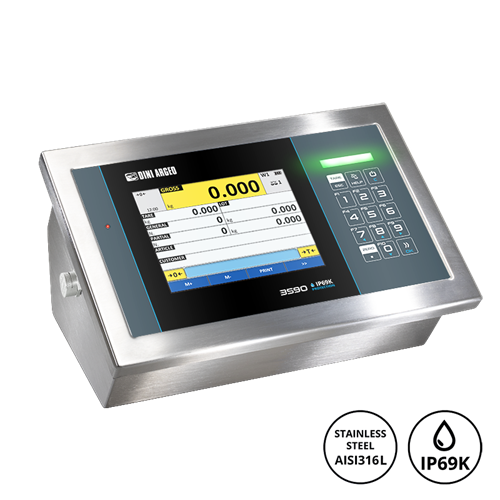

DINI ARGEO / 3590EGT HYGIENX: new stainless steel touchscreen weight indicator for environments with high hygiene requirements

DINI ARGEO / 3590EGT HYGIENX: new stainless steel touchscreen weight indicator for environments with high hygiene requirements

  • Touchscreen backlit graphic display, dimensions lxh= 120×90 mm.
  • Multilanguage software.
  • Waterproof alphanumeric keyboard with 15 keys.
  • Traffic light with 3 colors.
  • Touchscreen keyboard type QWERTY, AZERTY or QWERTZ, selectable.
  • AISI 316 stainless steel case.
  • IP68/IP69K certification against water, dust and high pressure hot water jets.
  • Dimensions: 280x143x185 mm.
  • Suitable for use on a table, column or wall.
  • Calendar clock and permanent data memory.
  • Alibi Memory as standard, integrated on the motherboard.
  • Internal micro SD slot (optional) for saving logos.
  • Functions available with DiniTools utilities:
    – Configuration, data entry and print formatting.
    – Storage and archiving of all information on PC.
    – Complete configuration back-up.
    – Customization of displays.
  • A/D converter 24 bit, 4 channels, up to 3200 conv./sec. with autoselect and up to 8 signal linearization points.
  • 4 independent analogue channels for reading the weight.
  • Max. 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved version.
  • Max. 1.000.000 displayable divisions for internal factory use with internal resolution up to 3.000.000 points.
  • Connectable to printers and labellers with free programming of the printing formats.
  • 110-240 Vac power supply through a 1.5 m cable with Shuko socket.
  • Management of up to 16 analogue load cells of 350 Ohm (45 cells at 1000 Ohm).
  • Max. 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved version.
  • Max. 1.000.000 displayable divisions for internal factory use with internal resolution up to 3.000.000 points.
  • Connectable to printers and labellers with free programming of the printing formats.
  • 110-240 Vac power supply through a 1.5 m cable with Shuko socket.
Category:
Tag:
Brand:

Description

3590EGT HYGIENX: new stainless steel touchscreen weight indicator for environments with high hygiene requirements

The 3590 HYGIENX weight indicator with touchscreen display and advanced weighing program is distinguished by its rugged AISI 316 stainless steel case and IP68 and IP69K protection ratings, which ensure fast and deep sanitization with high-temperature and high-pressure water jets.

In the chemical industry, as in the pharmaceutical and food industries, it is necessary to ensure thorough cleaning and exclude any risk of chemical, physical or bacterial contamination.

3590EGT HYGIENX offers traceability, data entry, database, wireless weighing storage and transmission functions according to Industry 4.0 requirements.
CE-M approved (OIML R-76/EN 45501).

3590EGT HYGIENX Weight Indicator
