Description

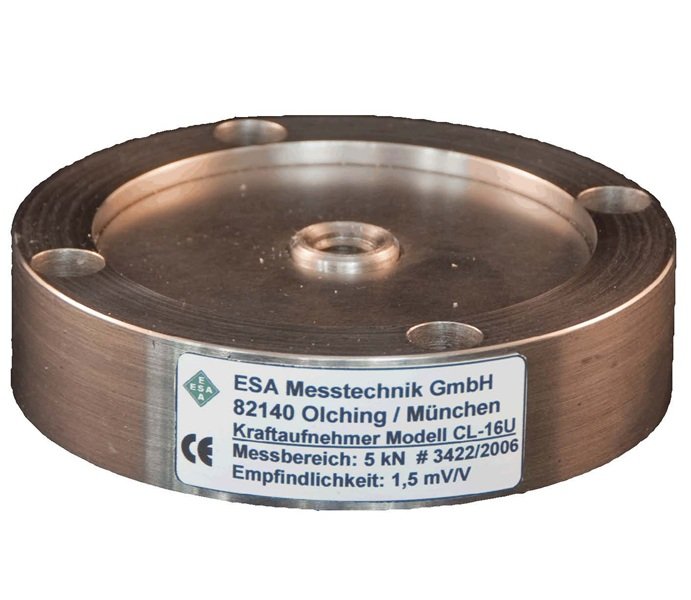

FORCE SENSOR CL 16U

This low-profile force sensor CL 16U is designed for measuring static and slow-changing forces. The sensor offers a wide range of applications in industrial process control and other professional force measurement projects.
The applied load is converted into an electrical signal by means of a metal spring element with a strain gauge full bridge. The bridge is fully balanced and temperature compensated.
The bridge is balanced and temperature compensated. Featuring a 350 Ω strain gauge full bridge circuit CL 16U is available in two configuration R1, R2 with a sensitivity of 1 mV/V or 2 mV/V respectively. For protection standard IP40 the sensor comes with an appropriate connector. For protection standard IP67 it is equipped with stuffing on the connection cable.
