Description

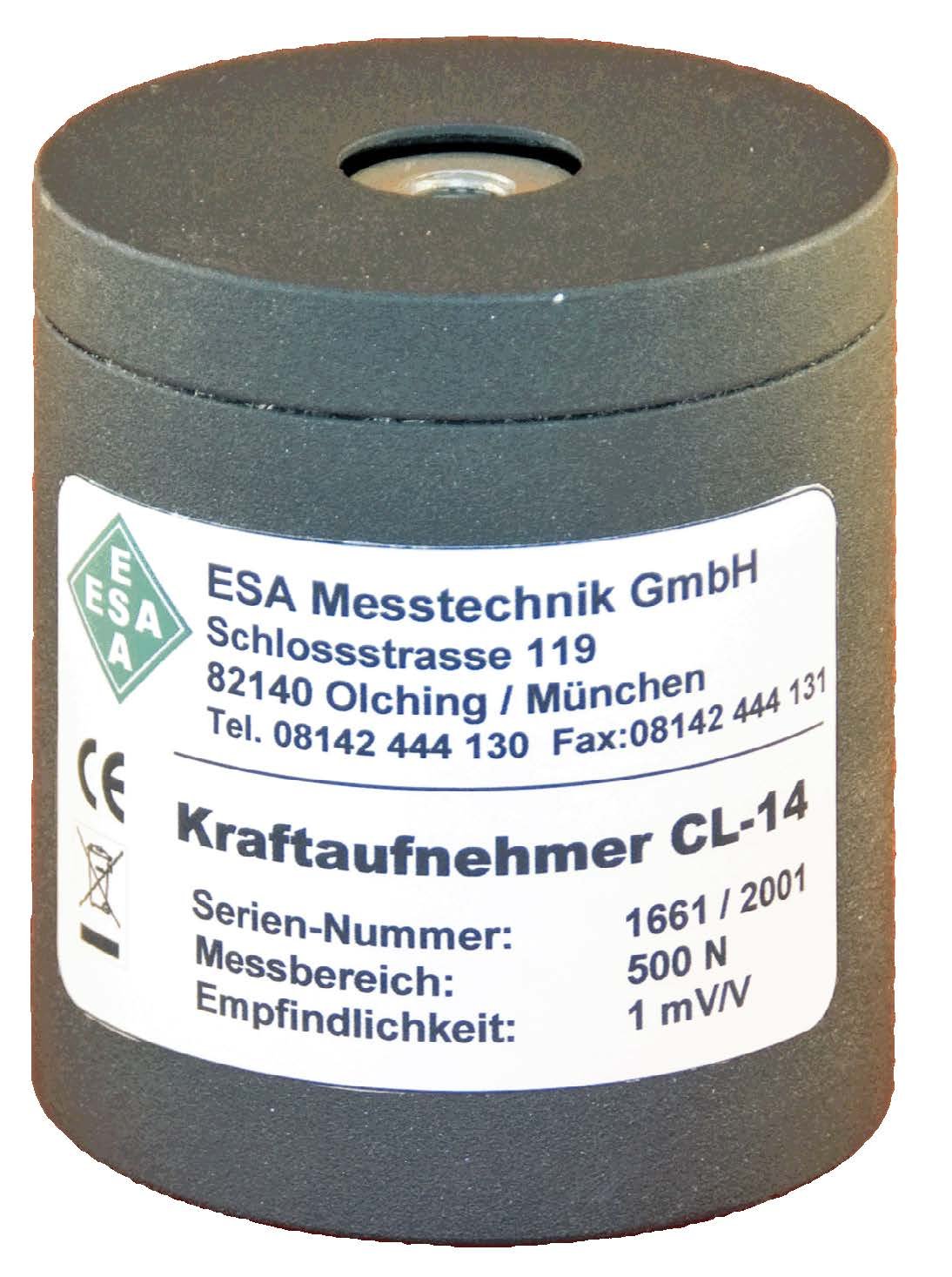

HIGH-PRECISION FORCE SENSOR MODEL CL 14

Based on a spring element of high quality steel and a strain gauge full bridge circuit which is resistance balanced and temperature compensated, model CL 14 force sensor is designed for measuring static and slow-changing forces for applications both in laboratory and industrial environment. It is particularly suitable for use in industrial automation and control systems.
Model CL 14 is applicable both in tension and compression mode, features a 350 Ω bridge circuit impedance, and is available in two configurations R1 and R2 with sensitivities of 1 mV/V and 2 mV/V respectively. It complies with protection systems IP40 and IP67.
