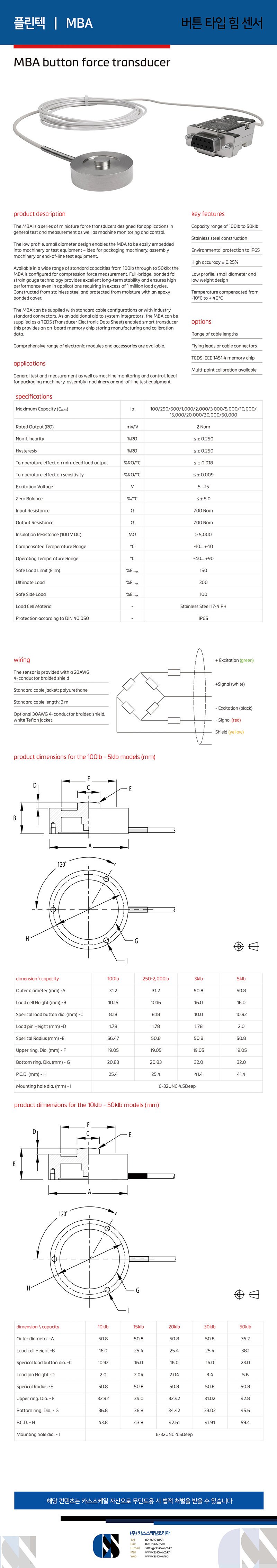

Flintec / MBA / Button Force Transducer
- Standard models are available over a wide range from 45 kg (100 lb) to 4,500 kg (10,000 lb).
- The MBC is primarily used to measure compressive forces acting on cylinders, bolts, or shafts. Models with various through‑hole sizes are available.
- A full‑bridge configuration using strain‑gauge technology provides excellent long‑term stability and ensures high performance in applications requiring more than one million load cycles.
- Constructed of stainless steel, with the circuitry protected from moisture by an epoxy‑sealed cover.
- The MBC can be supplied with standard cable configurations and industry‑standard connectors. As a smart transducer, the MBC optionally offers TEDS (Transducer Electronic Data Sheet) functionality for easier system integration and management; this feature uses an onboard memory chip to store manufacturing and calibration data.
- Compatible with a variety of electronic devices, modules, and accessories.
