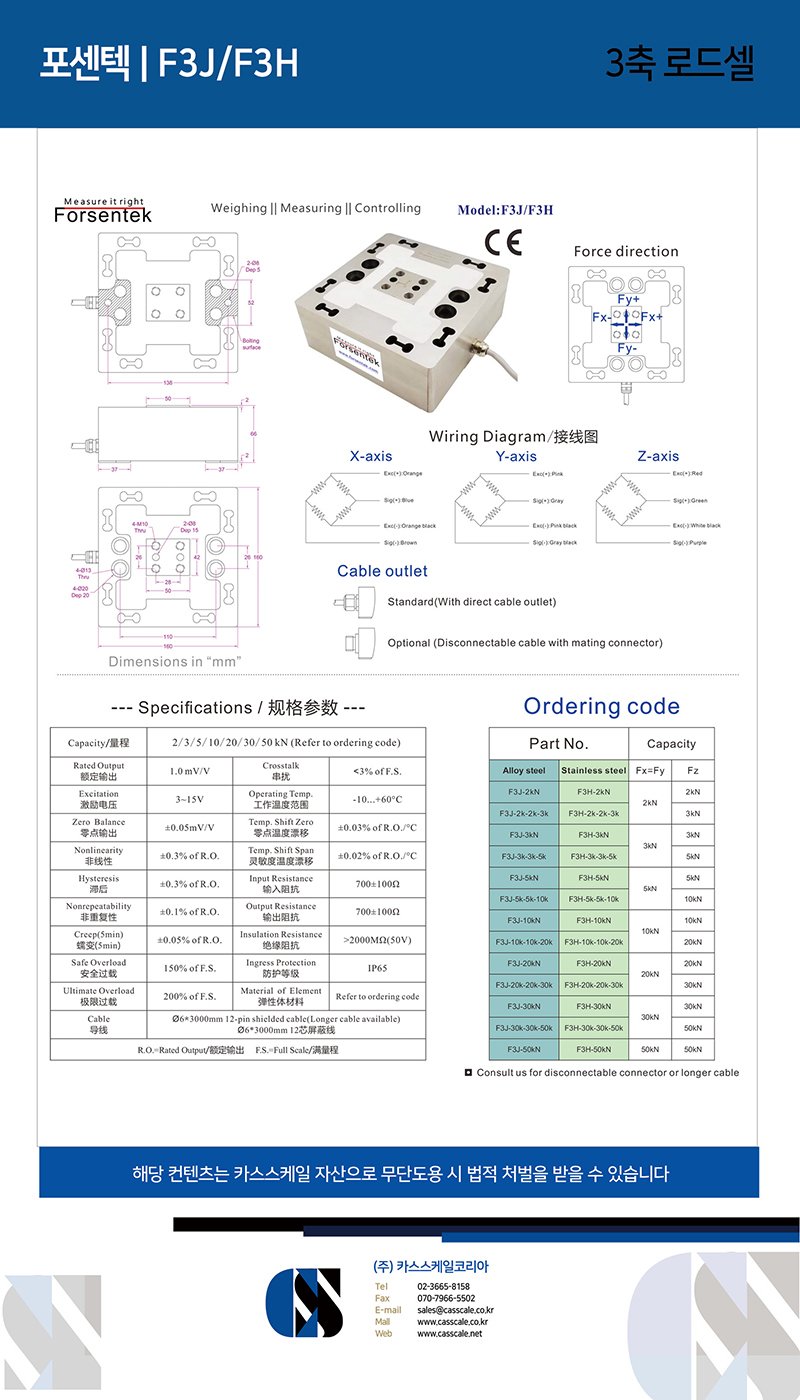

Multi component force sensor F3H is made of stainless steel(Alloy steel for model F3J) with 2kN / 3kN / 5kN / 10kN / 20kN / 30kN / 50kN (450lb / 675lb / 1.12klb / 2.25klb / 4.5klb / 6.75klb / 11.2klb) seven measuring ranges for all three axes to choose from. Independent wheatstone full bridge is bonded for each axis to provide mV/V output which is proportional to the applied force, all three axes(Fx/Fy/Fz) are capable of measuring force in both tension and compression direction without mathematical manipulation. Triaxial load cell F3J/F3H can be modified or customized as per client’s requirements if needed. Typical applications for 3-axis force transducer F3J/F3H are for example actuator operating force measurement, grinding force control, force exertion control in robotics, industrial test benches and so on.
