Description

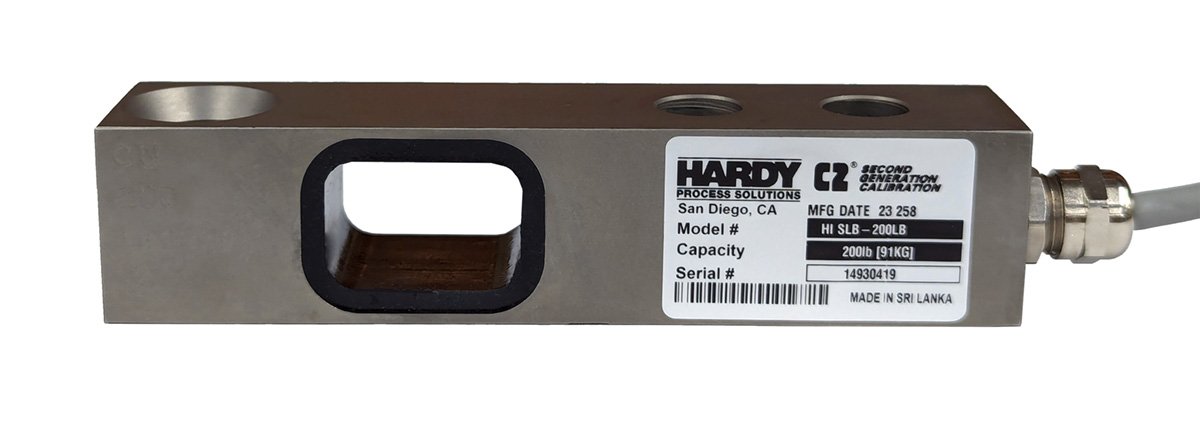

HISLB Shear Beam Load Cell
Constructed entirely from 17-4 PH (1.4548) stainless steel and environmentally sealed, B load cells offer offers exceptional durability and performance. The HISLB is rated to Class III accuracy level.
The HISLB comes in five different capacity models ranging from 200 lbs to 5Klbs (91kg to 2.27 mt). A threaded blind hole allows connection to self-aligning load feet to ensure optimum weighing accuracy.
IDEAL FOR PLATFORM SCALES
The HISLB was designed for tank and vessel weighing or incorporation into conveyor weighing, bench scales, platform scales and floor scales. When coupled with a Hardy instrument, summing card and feet, the HISLB is a common form factor and may be used to upgrade existing scale frames with Hardy C2 capabilities.
C2 CALIBRATION
HISLB load cells are designed with Hardy’s exclusive C2® Calibration for automatic system calibration to save hours in commissioning and routine maintenance. By reading the calibration with certificate data embedded electronically in the C2 sensor, the load cell can be calibrated the touch of a button, avoiding a time consuming traditional calibration procedure. This is essential for multi-head fillers where access to the load cell for traditional calibration requires taking the machine apart.
| SPECIFICATIONS | Units | HISLB |
| Maximum Capacity (Emax) | lbs | 200 / 500 / 1,000 / 2,500 / 5,000 |
| Maximum Capacity (Emax) | kgs | 91 / 227 / 454 / 1,134 / 2,268 |
| Accuracy Class | III | |
| Max number verification intervals | nmax | 3000 |
| Min load cell verification interval | vmin | Emax / 11500 |
| Combined Error | %RO | ± 0.0200 |
| Non-Linearity | %RO | ± 0.0166 |
| Hysteresis | %RO | ± 0.0166 |
| Creep error (30 Minutes) / DR | %RO | ± 0.0166 |
| Temperature effect on min dead load ouput | %RO/10°C | ± 0.0122 |
| Temperature effect on sensitivity | %RO/10°C | ± 0.0100 |
| Rated Output (RO) | mV/V | 2 ± 0.1% |
| Zero Balance | %RO | ± 5 |
| Excitation Voltage | V | 5-15 |
| Input Resistance | Ω | 1100 ± 50 |
| Output Resistance | Ω | 1,000 ± 2 |
| Insulation resistance (100VDC) | MΩ | ≥ 5000 |
| Load Cell Safe Load Limit | %Emax | 200 |
| Load Cell Ultimate Load Limit | %Emax | 300 |
| Load Cell Safe Side Load | %Emax | 100 |
| Maximum Platform Size | mm | 500 x 400 |
| Compensated Temperature Range | °C | -10 …±40 |
| Operating Temperature Range | °C | -40…±80 |
| Load Cell Material | Stainless Steel 17-4PH (1.4548) | |
| Sealing | Environmentally Sealed | |
| Protection according to EN 60 529 | IP67 | |
| Cable Length | ft | 10 ft |
| Manufacturer’s Warranty | Two Years |
| MODEL | CAPACITY | MOUNTING BOLTS |
| HISLB-200LB | 200LB/91KG | .500-20 UNC GRADE 5 |
| HISLB-500LB | 500LB/227KG | .500-20 UNC GRADE 5 |
| HISLB-1000LB | 1000LB/454KG | .500-20 UNC GRADE 5 |
| HISLB-2500LB | 2500LB/1134KG | .500-20 UNC GRADE 5 |
| HISLB-5000LB | 5000LB/2268KG | .500-20 UNC GRADE 8 |
Cable Length: 10 ft. (3 Meters)

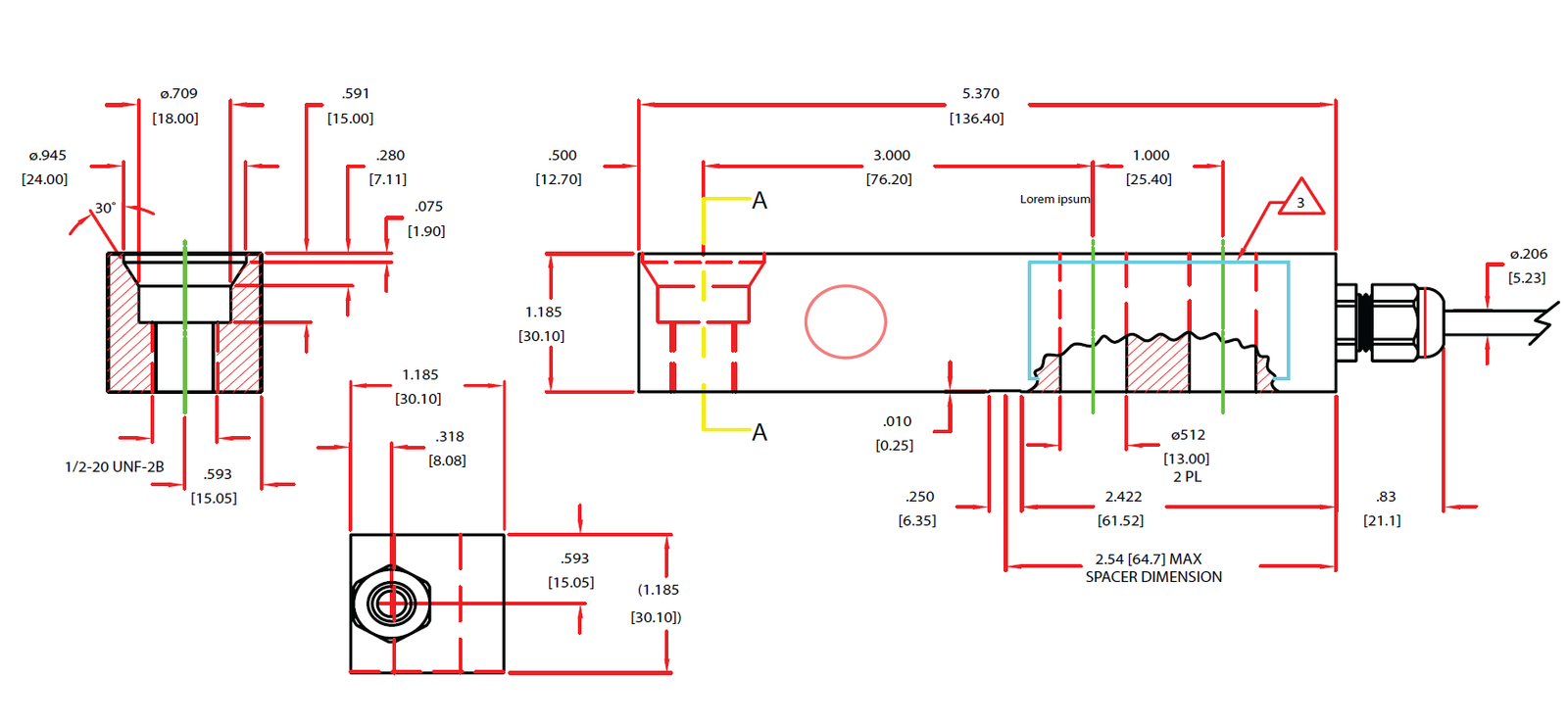

Dimensions: H 1.185 in (31 mm) x 5.370
in (136.4 mm) x W 1.185 in (31 mm)
Mounting Bolt Torque: 66 ft. lbs [90 KN] except 500 LB Capacity 88 ft.lbs [120 KN]
Optional Threaded Foot: HIHARF8 threads 1/2-20 UNF – 2B
| C2 WIRE COLOR CODE FLAG LABEL IS FOUND APPROX. 10 IN. FROM END OF SENSOR’S CABLE | |
| EXCITATION + | RED |
| EXCITATION – | BLACK |
| SIGNAL + | GREEN |
| SIGNAL – | WHITE |
| C2+* | GRAY |
| C2 –* | VIOLET |
| SHIELD | YELLOW |
WARNING: NEVER cut load sensor cable
All information within is subject to change without notice. Visit our website for latest specifications. WAVERSAVER, C2, IT, ADVANTAGE and ANY-WEIGH are registered trademarks of Hardy Process Solutions, Inc. All other trademarks or registered trademarks are the property of their respective owners.
