IMADA / SW series Compression and Tension (Bi-directional) Load Cell

This complies with IP67 (Ingress Protection Rating) waterproof and dustproof protection, with capacity of 500N. Both ends of the load cell are threaded so that it can be fixed to equipment or connected to an eyebolt.

Category: Tension & Compression Load Cell

Tag: Tension-Compression

Brand: IMADA

Description

SW series Compression and Tension (Bi-directional) Load Cell

Feature

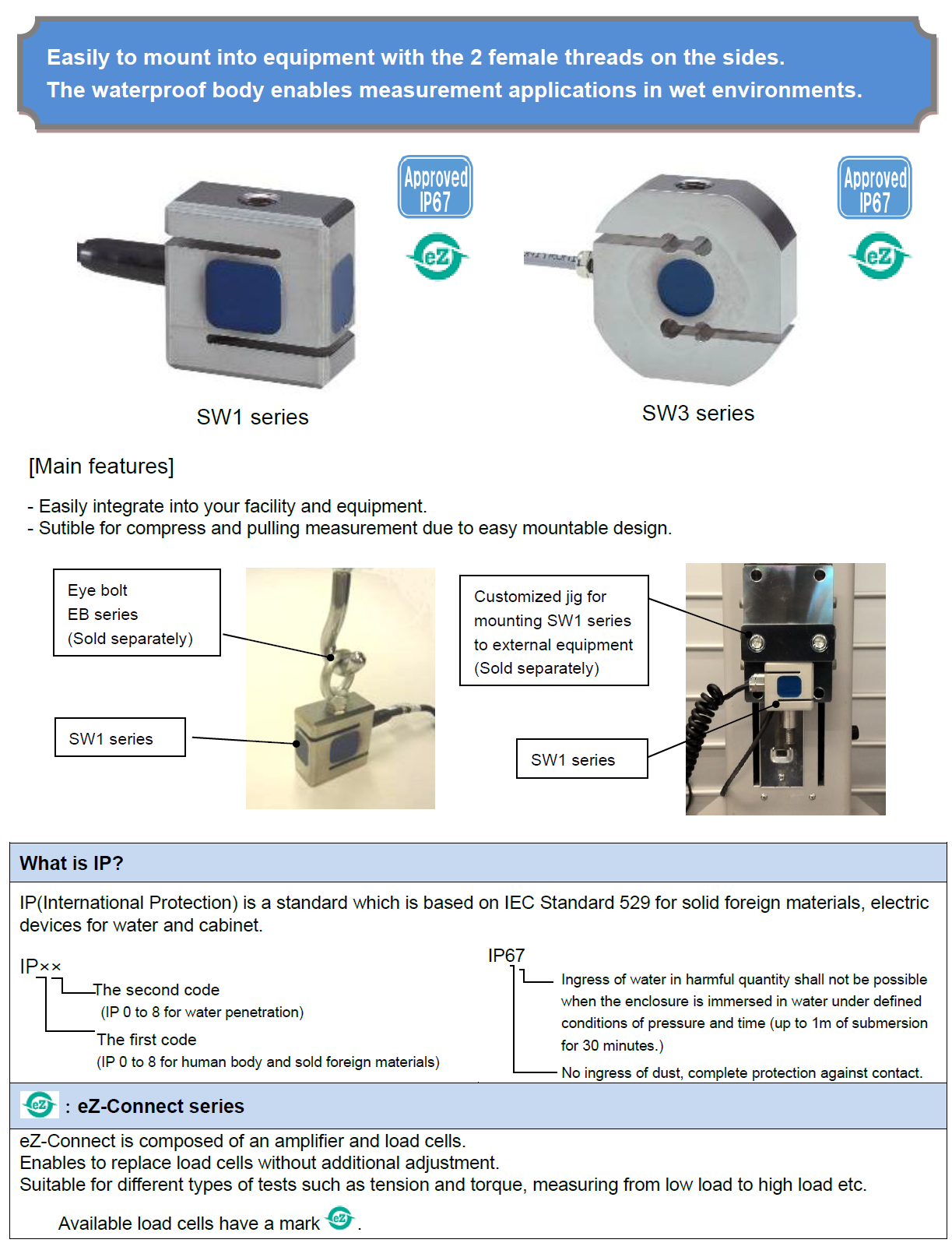

Allows easy integration into facilities due to threaded holes on both sides
Enables measurement applications in dusty or wet environment due to IP67 approval
Separated sensor model force gauges with a dedicated sensor available for a certain measurement purpose
eZ-Connect series (interchangeable sensors for using with one amplifier eZT) available for a wide range of testing
