• Measurement range: 5 to 20kN

• Accuracy: 1% FS

• Power Supply 10~15V

• 2mV/V output

• Grade of protection: IP67

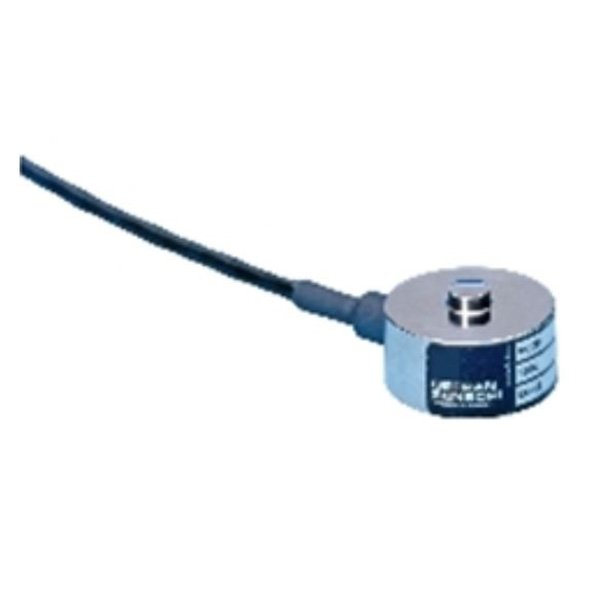

The AM force transducers series have been designed to measure static and dynamic compression forces.
They are particularly suitable for monitoring pounding operations in compression which require a rugged transducer,
insensitive to high resonance frequencies caused by nonhomogeneous leads in dynamic sequences.
The accuracy and the stability are not affected by continuous
cycling under harsh conditions even with dynamic loads.
The small size of the AM force transducers makes them ideal
for retrofitting in existing equipment.

AM-KN5U / AM-KN1D / AM-KN2D
