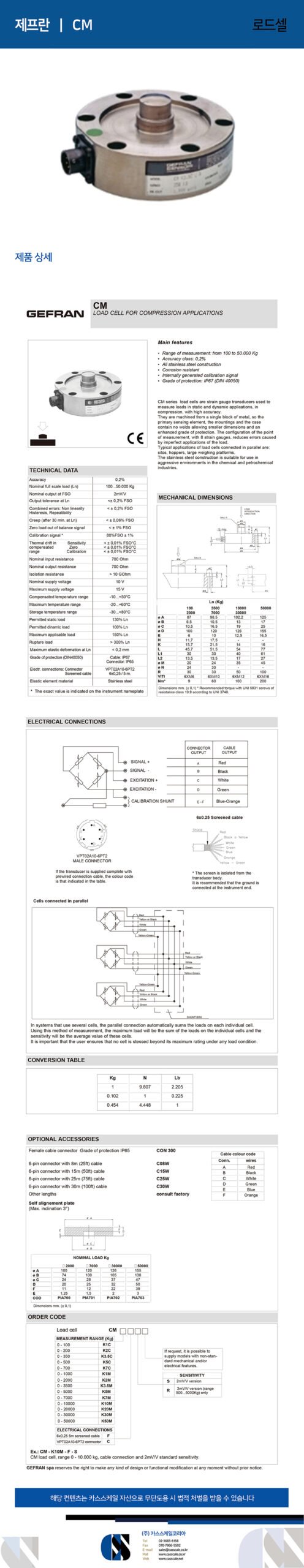

CM series load cells are strain gauge transducers used to
measure loads in static and dynamic applications, in
compression, with high accuracy.
They are machined from a single block of metal, so the
primary sensing element, the mountings and the case
contain no welds allowing smaller dimensions and an
enhanced grade of protection. The configuration of the point
of measurement, with 8 strain gauges, reduces errors caused
by imperfect applications of the load.
Typical applications of load cells connected in parallel are:
silos, hoppers, large weighing platforms.
The stainless steel construction is suitable for use in
aggressive environments in the chemical and petrochemical
industries.

CM-K1C-F-S / CM-K1C-F-R / CM-K1C-C-S / CM-K1C-C-R
CM-K2C-F-S / CM-K2C-F-R / CM-K2C-C-S / CM-K2C-C-R
CM-K3.5C-F-S / CM-K3.5C-F-R / CM-K3.5C-C-S / CM-K3.5C-C-R
CM-K5C-F-S / CM-K5C-F-R / CM-K5C-C-S / CM-K5C-C-R
CM-K7C-F-S / CM-K7C-F-R / CM-K7C-C-S / CM-K7C-C-R
CM-K1M-F-S / CM-K1M-F-R / CM-K1M-C-S / CM-K1M-C-R
CM-K2M-F-S / CM-K2M-F-R / CM-K2M-C-S / CM-K2M-C-R
CM-K3.5M-F-S / CM-K3.5M-F-R / CM-K3.5M-C-S / CM-K3.5M-C-R
CM-K5M-F-S / CM-K5M-F-R / CM-K5M-C-S / CM-K5M-C-R
CM-K7M-F-S / CM-K7M-F-R / CM-K7M-C-S / CM-K7M-C-R
CM-K10M-F-S / CM-K10M-F-R / CM-K10M-C-S / CM-K10M-C-R
CM-K20M-F-S / CM-K20M-F-R / CM-K20M-C-S / CM-K20M-C-R
CM-K30M-F-S / CM-K30M-F-R / CM-K30M-C-S / CM-K30M-C-R
CM-K50M-F-S / CM-K50M-F-R / CM-K50M-C-S / CM-K50M-C-R
