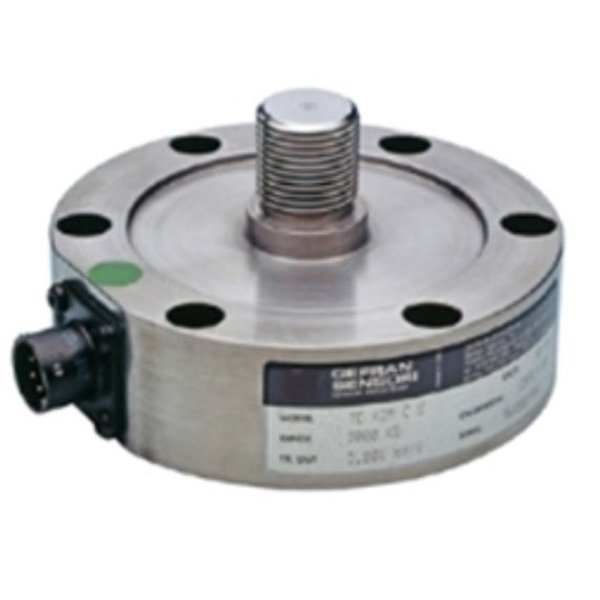

TC series load cells are strain gauge transducers used to
measure loads in static and dynamic applications, in tension
(positive signal of output) and compression (negaitive signal
of output), with high accuracy (industrial weighing, laboratory
testing, automation, etc).
The TC series is machined from a single block of metal, so
the primary sensing element, the mountings and the case
contain no welds allowing smaller dimensions and an enhanced grade of protection.
The configuration of the point of measurement, with 8 strain
gauges, reduces errors caused by imperfect application of the
load.Typical applications of load cells connected in parallel
are: silos, hoppers, large weighing platforms, and with suitable accessories, suspended loads. The stainless steel construction is suitable for use in aggressive environments in the
chemical and petrochemical industries.

TC-K1C-F-S / TC-K1C-F-R / TC-K1C-C-S / TC-K1C-C-R
TC-K2C-F-S / TC-K2C-F-R / TC-K2C-C-S / TC-K2C-C-R
TC-K3.5C-F-S / TC-K3.5C-F-R / TC-K3.5C-C-S / TC-K3.5C-C-R
TC-K5C-F-S / TC-K5C-F-R / TC-K5C-C-S / TC-K5C-C-R
TC-K7C-F-S / TC-K7C-F-R / TC-K7C-C-S / TC-K7C-C-R
TC-K1M-F-S / TC-K1M-F-R / TC-K1M-C-S / TC-K1M-C-R
TC-K2M-F-S / TC-K2M-F-R / TC-K2M-C-S / TC-K2M-C-R
TC-K3.5M-F-S / TC-K3.5M-F-R / TC-K3.5M-C-S / TC-K3.5M-C-R
TC-K5M-F-S / TC-K5M-F-R / TC-K5M-C-S / TC-K5M-C-R
TC-K7M-F-S / TC-K7M-F-R / TC-K7M-C-S / TC-K7M-C-R
TC-K10M-F-S / TC-K10M-F-R / TC-K10M-C-S / TC-K10M-C-R
TC-K20M-F-S / TC-K20M-F-R / TC-K20M-C-S / TC-K20M-C-R
