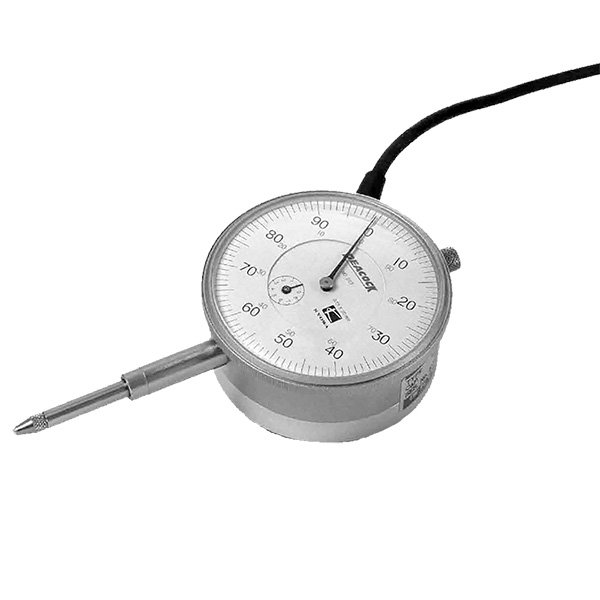

DT-D Displacement Sensor – Uses a strain gauge in the sensor section to ensure long-term stable measurements. Widely used for measuring structural relative or absolute displacement at stable points.

• Displacement can be read directly from the scale

• Excellent temperature characteristics

Notes:

1. Avoid using in areas with vibration.

2. When a large displacement is applied suddenly, it takes time for the output to stabilize.

3. Do not apply displacement in directions other than the rod’s expansion/contraction.

4. When using the DT-50D M150 horizontally, the rod may tilt about 10 mm due to its own weight, which may not follow the displacement accurately.

DT-10D / DT-20D
DT-30D M150  /  DT-50D M150
