LCV-A is a compact load cell designed for measuring large compressive loads and can be easily installed in existing facilities. It features a hermetically sealed structure filled with inert gas.

• Rated capacity: 500 kN, 1 MN
• Diameter: 126 mm (500 kN), 146 mm (1 MN)
• Non-linearity: within ±0.1% RO
• High output
• Long cycle life: over 10 million cycles
• Equipped with BISELCOM® gauge
(* The BISELCOM gauge is a self temperature-compensated strain gauge with sensitivity, temperature, and compensation functions.)

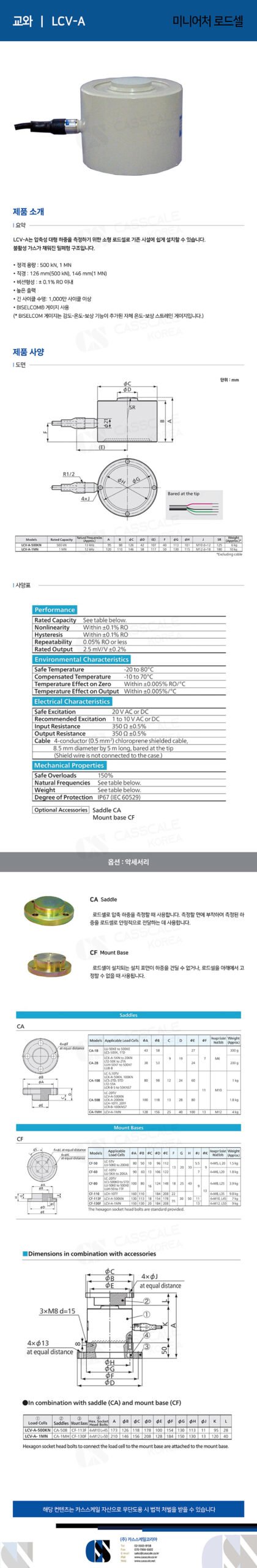

LCV-A-500KN  /  LCV-A-1MN
