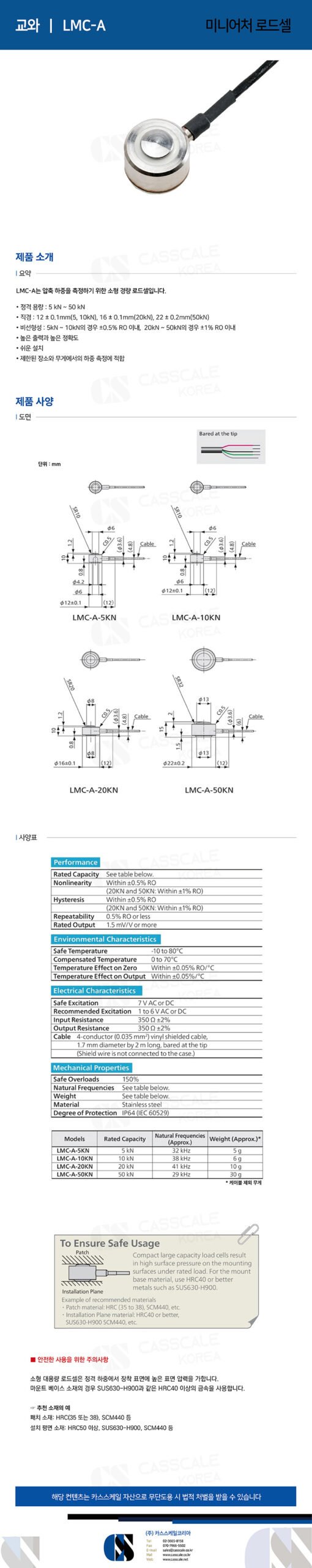

LMC-A is a compact, lightweight load cell designed for measuring compressive loads.

• Rated Capacity: 5 kN ~ 50 kN
• Diameter: 12 ± 0.1 mm (5, 10 kN), 16 ± 0.1 mm (20 kN), 22 ± 0.2 mm (50 kN)
• Nonlinearity: ±0.5% RO for 5–10 kN, ±1% RO for 20–50 kN
• High output and high accuracy
• Easy installation
• Suitable for load measurement in limited spaces and under weight constraints

LMC-A-5KN (5kN)  /  LMC-A-10KN (10kN)  /  LMC-A-20KN (20kN)  /   LMC-A-50KN (50kN)
