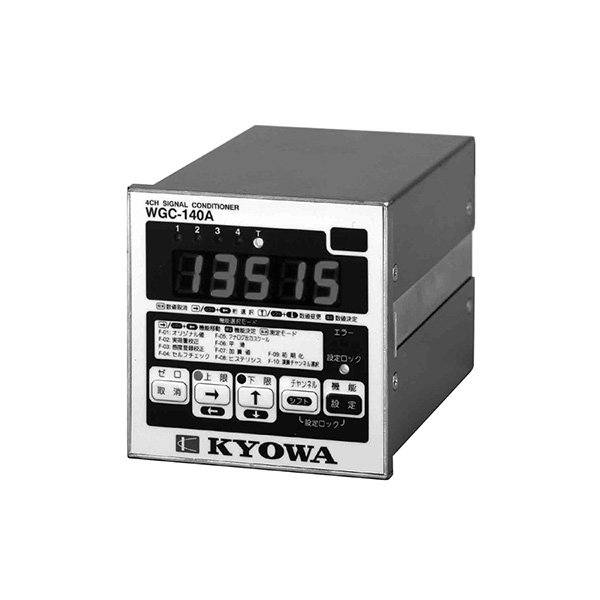

WGC-140A is suitable for measuring and controlling load on each column of a press and total load, or for measuring load balance and total load in various applications to control tension. It also allows multiplying a coefficient to the total value, enabling operators to adjust the coefficient as an emergency measure in case of transducer issues.

Up to 4 independent 350 Ω strain gauge-type transducers can be connected to each amplifier circuit

Circuit design prevents a faulty channel from affecting other channels

Upper/lower limit comparison function for total values

High-speed output suitable for control, I/O delay approximately 10 ms

Sensor inspection and self-test functions

Display range: -19,999 to 19,999 (decimal point can be placed anywhere)
