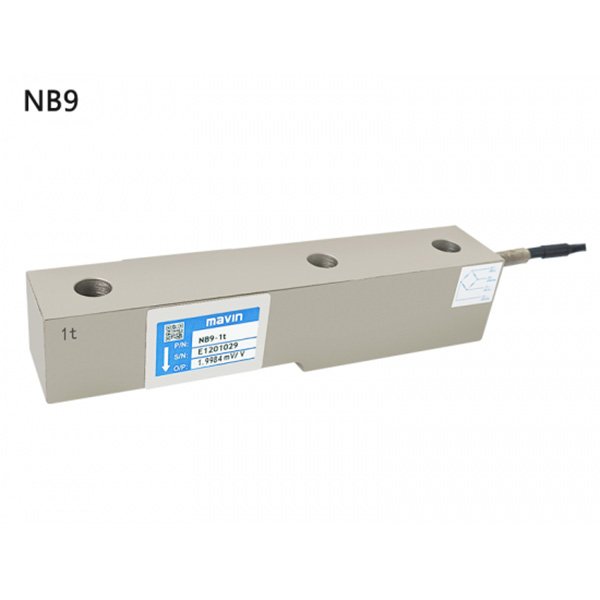

Single ended shear beam load cells are ideally suited to all industrial weighing scale and general load measurement applications, including vessel, tank, silo and process weighing. The beam load cell range starts with capacities from 500kg through to 3 tones.

Item NO.:NB9
Product Orgin:China
Shipping Port:Xiamen
Payment:100% payment before shipment
Capacities:0.5-3t
Material:Steel Alloy
Dimension:203*39*43mm
Rated Output:2.0mV/V
Protection Class:IP67 / IP68
