Description

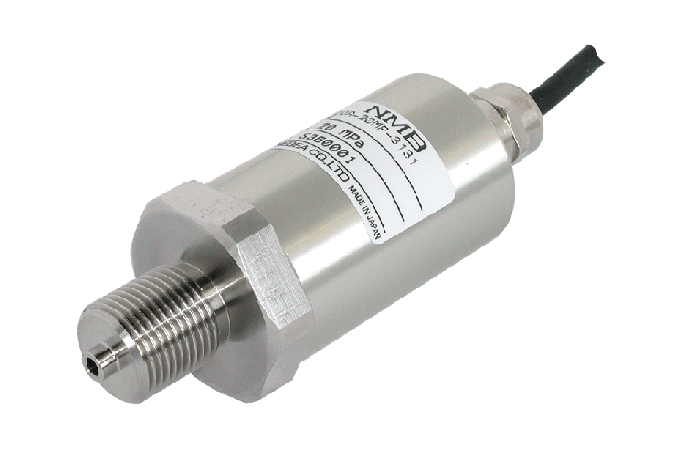

NS100A Series SOS-type Pressure Transmitter
- Highly accurate pressure transmitter 0.2% R.O. as a standard by SOS technology (including non-linearity, hysteresis and repeatability). 0.1% R.O. is also available as high accuracy type.
- SOS technology enables high reliability and durability
- Can correspond to absolute pressure and compound pressure
- Small size and light weight
- Wide pressure range from 200kPa to 50MPa
|
Rated capacity
|
200 kPa ~ 50 MPa
|
|
Safe overload
|
200% R.C.
|
|
Ultimate overload
|
300% R.C.
|
|
Accuracy
|
0.2% R.O. (including non-linearity, hysteresis and repeatability)
|
|
Rated output
|
Current: 4 mA ~ 20 mA (2-wire method, load resistance ≤500 ohm, at 24 V)
Voltage: 0 V ~ 10 V (Load resistance ≥5 k-ohm) |
|
Response frequency
|
1 kHz
|
|
Power supply voltage
|
DC 24 V(18 V ~ 28 V)
|
|
Power consumption
|
Approx. 30 mA
|
|
Insulation resistance
|
≥1,000 MΩ (DC 50 V)
|
|
Temp. range, compensated
|
-20 ℃ ~ 70 ℃
|
|
Temp. range, safe
|
-30 ℃ ~ 80 ℃
|
|
Temp. effect on zero
|
0.2% R.O./10 ℃
|
|
Temp. effect on output
|
0.2% LOAD/10 ℃
|
|
Cable
|
φ4.7, 2 m shielded cable directly attached,
cable end separated (cable attached type) |
|
Connector
|
R03-RB5F (receptacle)
|
|
Class of protection
|
IP44 or equivalent (main body only)
|
|
Material of pressure hole
|
Stainless steel
|
|
Material of cover
|
Aluminum alloy (with almite processing)
|
|
Material of pressure diaphragm
|
Single crystal sapphire, etc.,
|
|
Mounting screw
|
G3/8{PF}
|
|
Weight
|
Approx. 200 g
|
|
Tightening torque
|
20 N･m ~ 40 N･m {2.04 kgf･m ~ 4.08 kgf･m}
|
|
Special specification
|
NS100A-D6: Guaranteed accuracy 0.2%R.O. at negative side. Power supply voltage: ±DC15 V
NS100A-H: Amplifier part is separated. (highest, environmental temperature is 200℃) NS100A-S70: IP67 or equivalent waterproof construction with zero adjustment factor) NS102: Pressure inlet port : φ10 |
|
Part Number
|
Rated Capacity
|
|---|---|
|
NS100A-200KP*-*132
|
200 kPa
|
|
NS100A-500KP*-*132
|
500 kPa
|
|
NS100A-1MP*-*132
|
1 MPa
|
|
NS100A-2MP*-*132
|
2 MPa
|
|
NS100A-5MP*-*132
|
5 MPa
|
|
NS100A-10MP*-*132
|
10 MPa
|
|
NS100A-20MP*-*132
|
20 MPa
|
|
NS100A-25MP*-*132
|
25 MPa
|
|
NS100A-30MP*-*132
|
30 MPa
|
|
NS100A-35MP*-*132
|
35 MPa
|
|
NS100A-50MP*-*132
|
50 MPa
|
