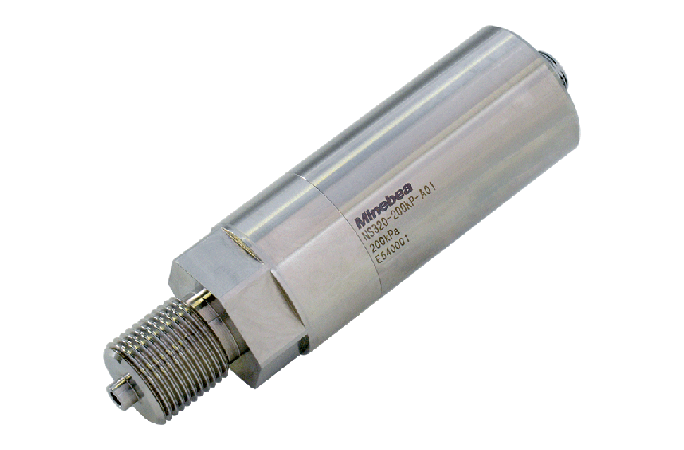

NS320 Series SOS-Type Pressure Transmitter
Features
- Integrated pressure sensor with high-performance sensing part (SOS element) with 0.1% F.S. measurement error
- Achieves high accuracy pressure measuring by 0.5% F.S., including error, in the temperature compensation range from -30℃ to 125℃
- High accuracy model (-A01) achieves error of 0.2% F.S. by improving performance in the temperature compensation range from 0℃ to 50℃ based on the standard model
- Signal response performance is 2kHz.
|
Rated capacity
|
200 kPa ~ 30 MPa
|
|
Safe overload
|
200% R.C.
|
|
System accuracy
|
±0.5% F.S./-30℃ ~ 125
(including accuracy, temperature effect and output effect under electromagnetic environment.) (High accuracy model (-A01): ±0.2% F.S./0℃ ~ 50℃) |
|
Accuracy
|
±0.1 % F.S. at 25℃ (including non-linearity, hysteresis and repeatability)
|
|
Rated output
|
0 V ~ 10 V (Load resistance ≥10 kΩ)
|
|
Power supply voltage
|
DC11.5 V ~ 17.5 V
|
|
Insulation resistance
|
≥1,000 MΩ (DC 50 V)
|
|
Response frequency
|
2 kHz
|
|
Current consumption
|
≤10 mA
|
|
CE standard conformity product
|
Standard: EN61326-1 (2013), EN61000-6-1 (2007), EN61000-6-2 (2005), EN61000-6-3 (2007/A1: 2010), EN61000-6-4 (2007/A1: 2011)
|
|
Temp. range, compensated
|
-30℃ ~ 125℃
|
|
Temp. range, safe
|
-40℃ ~ 135℃
|
|
Temp. effect
|
0.4% F.S./-30℃～125℃
|
|
Class of protection
|
IP44 or equivalent (main body only)
|
|
Material of pressure inlet hole
|
Stainless alloy
|
|
Material of cover
|
Stainless alloy
|
|
Material of pressure diaphragm
|
Single crystal sapphire
|
|
Mounting screw
|
G 3/8
|
|
Weight
|
Approx. 200 g (main body only)
|
|
Connector
|
OT series (made by LEMO)
|
|
Tightening torque
|
20 N･m ~ 40 N･m
|
