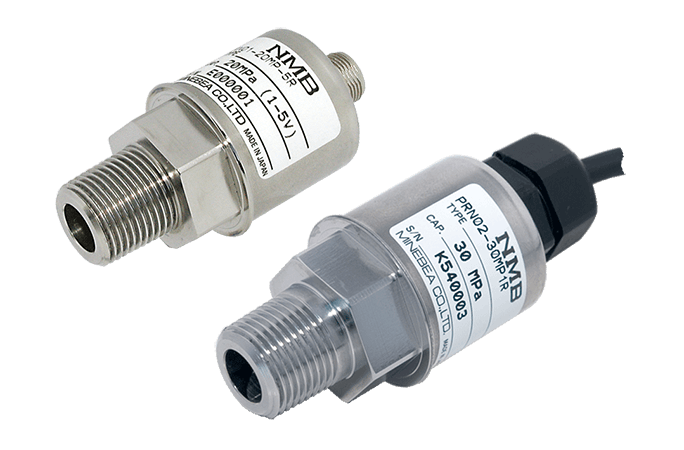

PRN01 / PRN02 Series Strain Gauge-Type Pressure Transmitter
Features
- Integrated ASIC (Application Specific I.C.) amplifier
- High performance type pressure transmitter with minimal temperature effect and noise
- Total accuracy: ±1.0% F.S. (including temperature effect from -20℃ to 70℃.)
- Newly developed high stability and low current strain gauge used for diaphragm made of 17-4 PHs
Applications
- Injection molding machine
- Press machine
- Various pump systems
- Hydraulic apparatus
|
Rated capacity
|
5 MPa ~ 100 MPa
|
|
Safe overload
|
150% R.C.
|
|
Ultimate overload
|
200% R.C.
|
|
Accuracy
|
±1.0 % F.S. (including non-linearity, hysteresis, repeatability)
|
|
Rated output
|
Current: 4 mA ~ 20 mA
Voltage: 0 V ~ 5 V, 1 V ~ 5 V |
|
Response frequency
|
1 kHz
|
|
Power supply voltage
|
DC 12 V ~ 28 V
|
|
Insulation resistance
|
≥1,000 MΩ (DC 50 V)
|
|
Temp. range, compensated
|
-20 ℃ ~ 70 ℃
|
|
Temp. range, safe
|
-30 ℃ ~ 80 ℃
|
|
Temp. effect on zero
|
PRN01: ±1.0% F.S./-20 ℃ ~ 70 ℃
PRN02: ±2.0% F.S./-20 ℃ ~ 70 ℃ |
|
Temp. effect on output
|
PRN01: ±1.0% F.S./-20 ℃ ~ 70 ℃
PRN02: ±2.0% F.S./-20 ℃ ~ 70 ℃ |
|
Cable
|
φ4.7, shielded 1 m cable directly attached, cable end is separated (cable directly attached type: PRN01)
|
|
Class of protection
|
IP65 or equivalent
|
|
Material of element
|
Stainless steel
|
|
Mounting screw
|
G3/8{PF}, R3/8{PF} (PRN01/02-100MP: G1/2{PF}, R1/2{PF})
|
|
Weight
|
Approx. 70 g
|
