Description

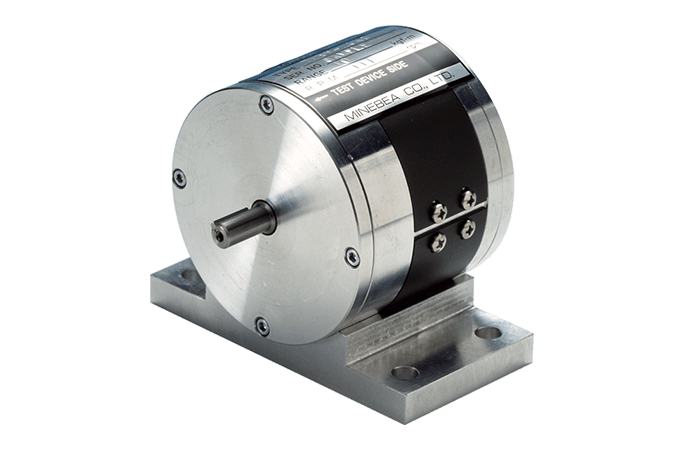

TMBN Series Shaft Style Slip Ring Method
Features
- Suitable for the detection of a minute torque
- Small size and light weight
|
Rated capacity
|
±20 N ･ cm ~ ±300 N ･ cm
|
|
Safe overload
|
120% R.C.
|
|
Rated output
|
1 mV/V±0.2 mV/V
|
|
Non-linearity
|
0.5% R.O.
|
|
Hysteresis
|
0.5% R.O.
|
|
Repeatability
|
0.5% R.O.
|
|
Excitation, recommended
|
5 V or less
|
|
Zero balance
|
±0.2 mV/V
|
|
Input resistance
|
700 Ω±7 Ω
|
|
Output resistance
|
700 Ω±7 Ω
|
|
Insulation resistance
|
500 MΩ or more (DC 50 V) (between bridge and main body)
|
|
Temp. range, safe
|
0 ℃ ~ 60 ℃
|
|
Temp. effect on zero
|
0.5% R.O./10 ℃
|
|
Maximum rotation
|
2,000 rpm
|
|
Standard operating rotation
|
500 rpm
|
|
Class of protection
|
IP40 or equivalent
|
|
Cable (Accessories)
|
φ6.3, 4-cores shielded 3 m cable with connector and Y-type crimp terminal lugs at the cable end
|
|
Weight
|
Approx. 0.6 kg
|
|
Part Number
|
Rated Capacity
|
|---|---|
|
TMBN-20NC
|
20 N ･ cm
|
|
TMBN-50NC
|
50 N ･ cm
|
|
TMBN-100NC
|
100 N ･ cm
|
|
TMBN-200NC
|
200 N ･ cm
|
|
TMBN-300NC
|
300 N ･ cm
|
