Description

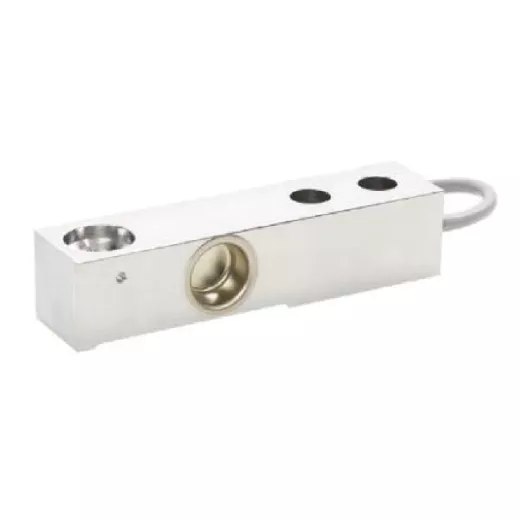

LBFF1 Cantilever Beam Platform Scales High Accuracy Load Cell

Applications of Load Cell
·Scale manufacturers (platform scales, legal-for-trade scales)
·Medicine (weighing hospital patients)
·Building industry (weighing materials, power shovels)
·Agriculture (automatic feeders)
·Public sector (weighing garbage)
·Quality assurance
Introduction of Load Cell
Cantilever Beam load cell is ideal for use in static and quasi-static weighing tasks; for instance, for the gravimetric level measurement of suspended tanks as well as for conveyor, batching, and hybrid scales. It is available in seven maximum capacities, which range from 220 to 1760kg, thus covering a very broad range, the product is widely used for various scale, industrial weighing system.
Special features of Load Cell
·Cantilever beam design, compression force measurement
·Wide measuring range up to 1760kg
·Excellent overload capacity
·High accuracy, water-proof, anti-corrosion

Load Cell electric specification

Power supply: 5~24VDC

Various optional output signal: 2.0mV/V, (if connect with amplifier, 4~20mA, 0~5V, 0~10V etc)

Input resistance: 380±20Ω

Output resistance: 350±5Ω

Insulation resistance: 5000MΩ

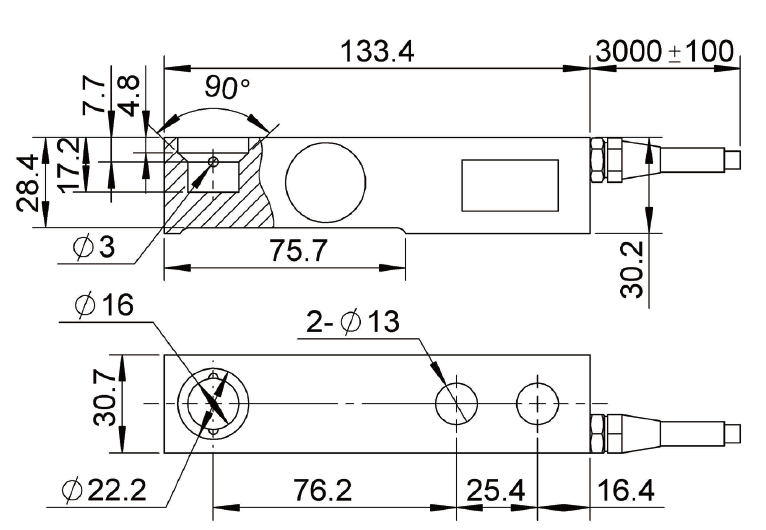

Load Cell construction

Stainless steel
