LBW Hopper Scales Platform Scale Belt Scale Bending Beam Tank Weighing Load Cell
Applications of Load Cell
·Scale manufacturers (platform scales, legal-for-trade scales)
·Medicine (weighing hospital patients)
·Building industry (weighing materials, power shovels)
·Agriculture (automatic feeders)
·Public sector (weighing garbage)
·Quality assurance

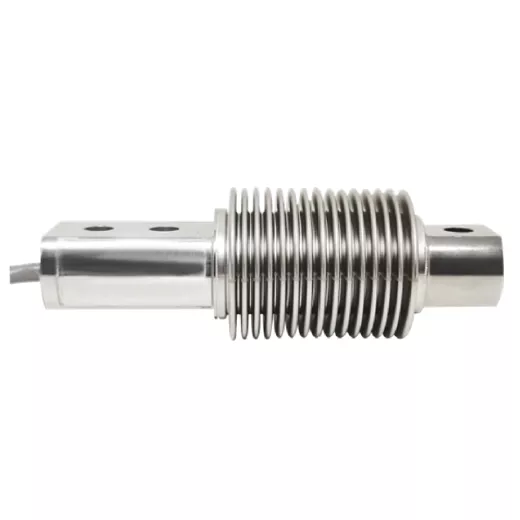

Introduction of Load Cell
LBW bending beam load cell is designed for heavier duty applications. Capacities extend to 100kg ideal for belt scale, hopper and packing scale or more general purpose industrial weight measurement in process industries. All stainless steel and hermetically sealed is the ideal choice high accuracy industrial weighing machinery
Special features of Load Cell
·Bending beam design, compression force measurement
·Metal bellows seal
·High accuracy, excellent overload capacity
·Water-proof, anti-corrosion, protection grade up to IP69K
Load Cell electric specification
Power supply: 5~24VDC
Various optional output signal: 2.0mV/V, (if connect with amplifier, 4~20mA, 0~5V, 0~10V etc)
Input resistance: 380±20Ω
Output resistance: 350±5Ω
Insulation resistance: 2000MΩ
Load Cell construction
Stainless steel
| Specifications | Technical data |
|
Rated capacity |
5、 10、 20、 50、 100 kg |
| Output sensitivity | 2.0±0.2 mV/V |
| Non-linearity | ≤±0.02 %F.S. |
| Hystersis | ≤±0.02 %F.S. |
| Repeatability | ≤±0.02 %F.S. |
| Creep | ≤±0.02 %F.S./30min |
| Temperature effect on output | ±0.014 %F.S./10℃ |
| Temperature effect on zero | ±0.020 %F.S./10℃ |
| Input resistance | 380±20 Ω |
| Output resistance | 350±5 Ω |
| Zero output | ＜±5 %F.S. |
| Insulation resistance | ≥2000MΩ |
| Operating temperature range | -25~+70 ℃ |
| Safe overload | 150 %F.S |
| Ultimate overload | 300 %F.S |
| Recommended excitation voltage(without amplifier) | 5~12 Vdc |
| Maximum excitation voltage(without amplifier) | 15 Vdc |
| Material | Stainless steel |
| IP protection | IP69k |

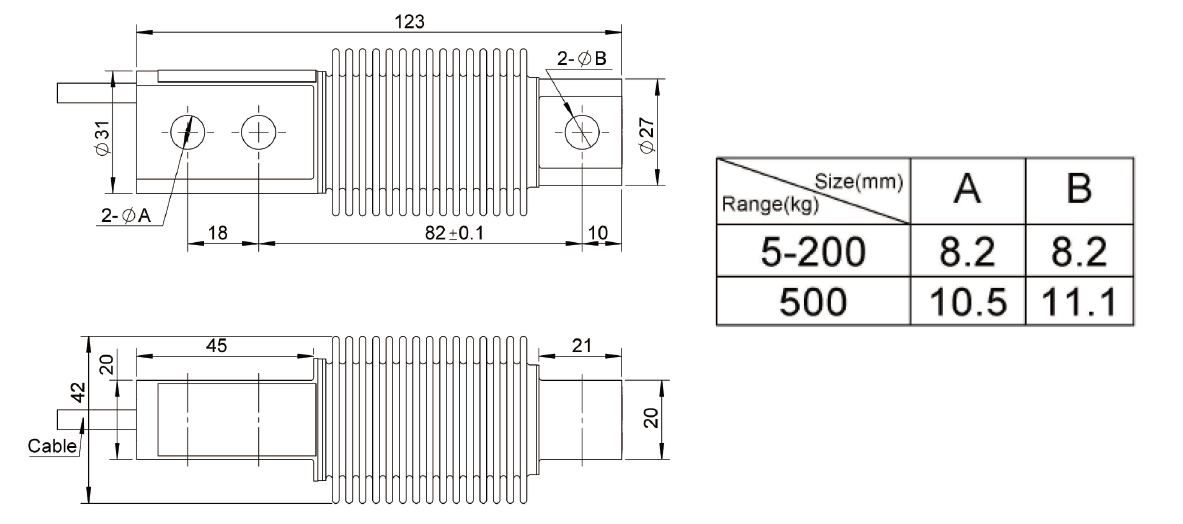

Load Cell dimensions:
