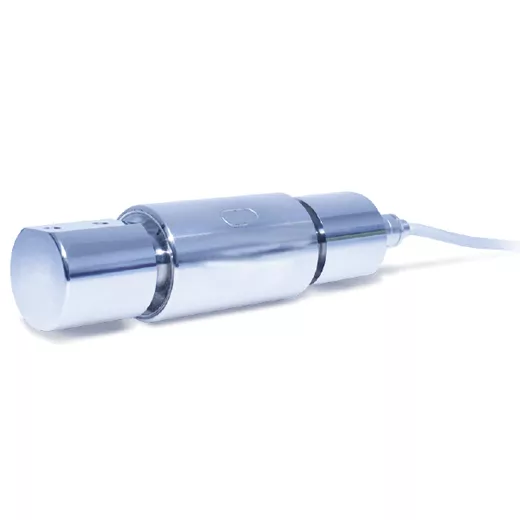

SP25 Compact Seal IP68 Erosion Resistance High Precision Strain Gauging Single Point Load Cell
Applications of Load Cell
·Scale manufacturers (platform scales)
·Medicine (weighing hospital patients)
·Building industry (weighing materials, power shovels)
Introduction of Load Cell
SP25 single point load cells are perfectly suited for use with any type of tank, batching or platform scales as well as for level monitoring – and are used by market leaders. Precise measurement results up to accuracy class C3 per OIML R60. The particularly robust SP25 single point load cells are available in standard dimensions and can be easily integrated and quickly adapted to the required maximum capacities ranging from 10 kg to 20 kg(Customizable).
Special features of Load Cell
·Single point constructure
·High precision and cost effective
·Excellent dustproof
·Easy for installation and use
Load Cell electric specification
Power supply: 5~24VDC
Various optional output signal: 2.0mV/V, (if connect with amplifier, 4~20mA, 0~5V, 0~10V etc)
Input resistance: 380±20Ω
Output resistance: 350±3Ω
Insulation resistance: 2000MΩ
Load Cell construction
Stainless steel
| Specifications | Technical data |
|
Rated capacity |
10kg 、 20kg (Customizable) |
| Output sensitivity | 2.0±0.2 mV/V |
| Non-linearity | ±0.0166 %F.S. |
| Hystersis | ±0.0166 %F.S. |
| Repeatability | ±0.0166 %F.S. |
| Creep | ±0.0166 %F.S./30min |
| Temperature effect on output | ±0.0175 %F.S./10℃ |
| Temperature effect on zero | ±0.0140 %F.S./10℃ |
| Input resistance | 380±20 Ω |
| Output resistance | 350±3 Ω |
| Zero output | ＜±2 %F.S. |
| Insulation resistance | ≥2000MΩ |
| Operating temperature range | -25~+70 ℃ |
| Safe overload | 150 %F.S |
| Ultimate overload | 300 %F.S |
| Recommended excitation voltage(without amplifier) | 5~12 Vdc |
| Maximum excitation voltage(without amplifier) | 15 Vdc |
| Material | Stainless steel |
| IP protection | IP68 |

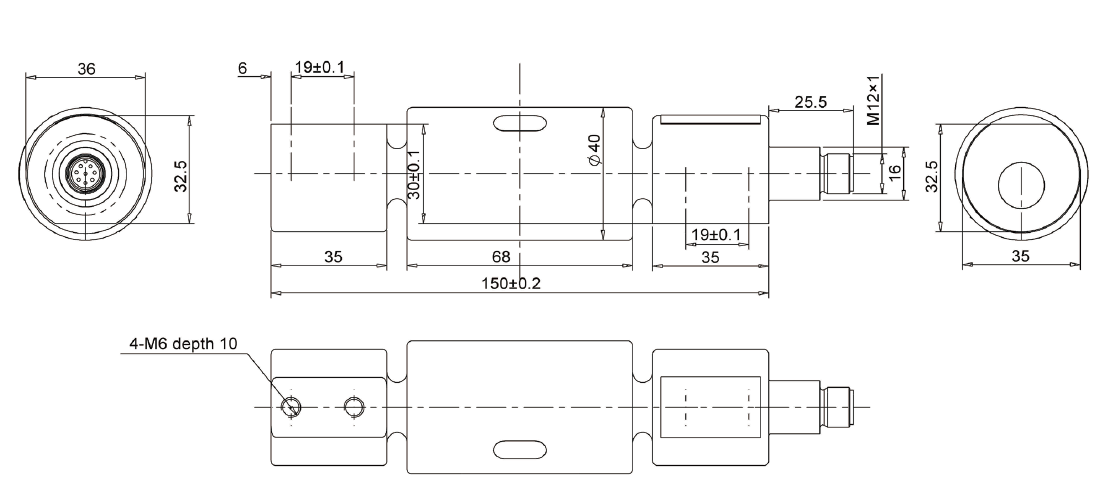

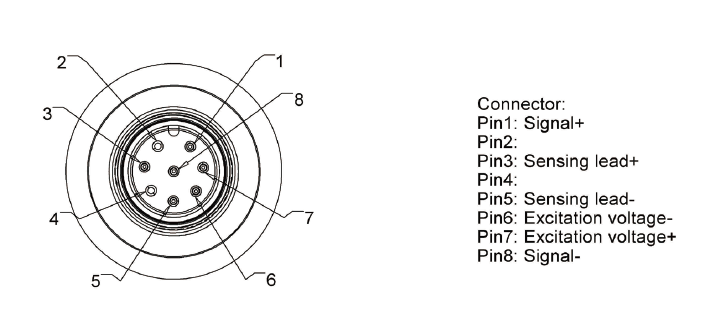

Load Cell dimensions:
