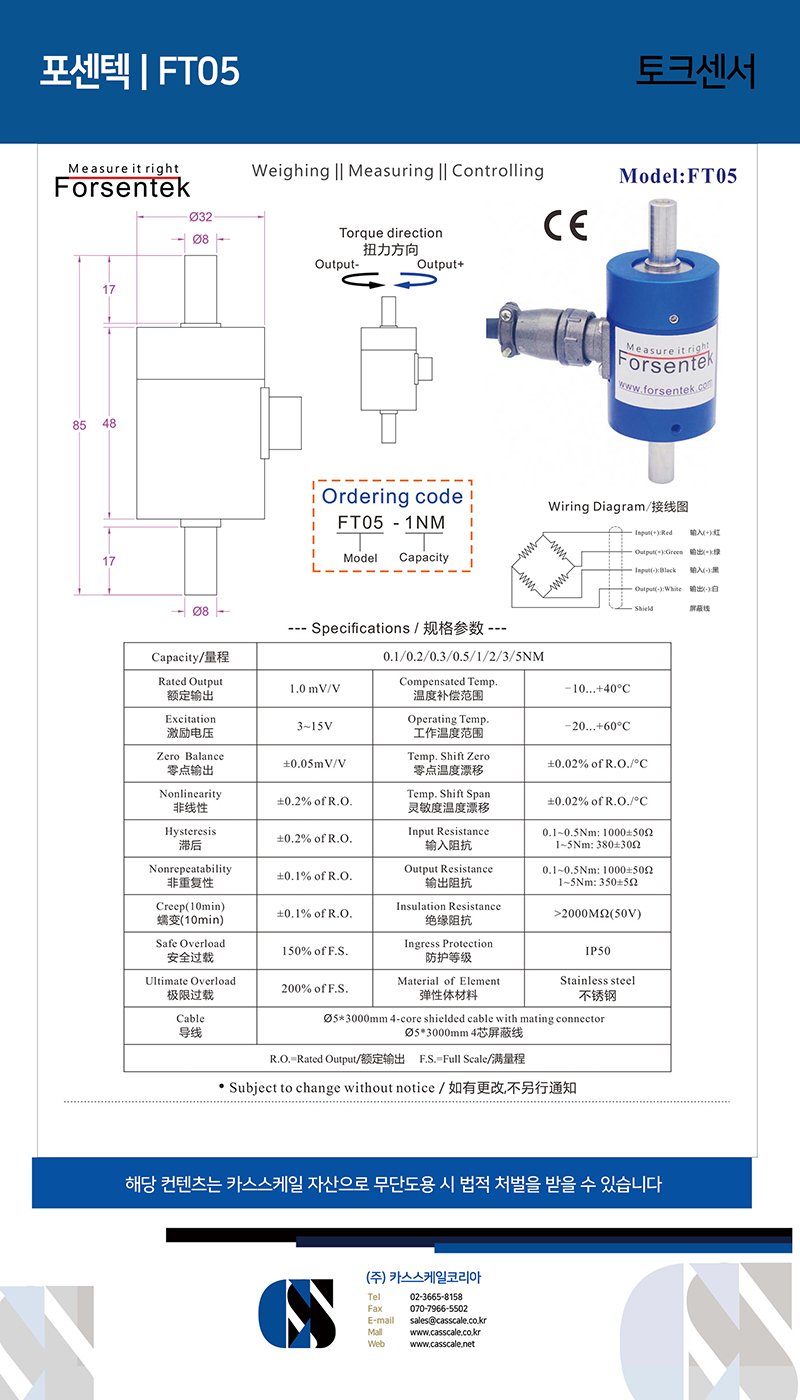

Miniature shaft to shaft in-line reaction type torque sensor FT05 utilizes metal foil strain gauges which are bonded on a special machined stainless steel body to deliver a maximum 0.2% non-linearity of the full capacity. Micro Torque Sensor FT05 offers 0.1Nm / 0.2Nm / 0.3N*m / 0.5Nm / 1N*m / 2Nm / 3N-m / 5Nm eight rated measuring ranges for torque measurement in both clockwise and counterclockwise direction. Each sensor includes a 3-meter-long shielded cable with mating connector and an in-house calibration certificate to guarantee the sensor performance. Reaction Torque Sensor FT05 adopts shaft-to-shaft configuration which can be connected to drive devices through couplings, the shaft size can be modified or customized to meet mounting requirements of different applications.
