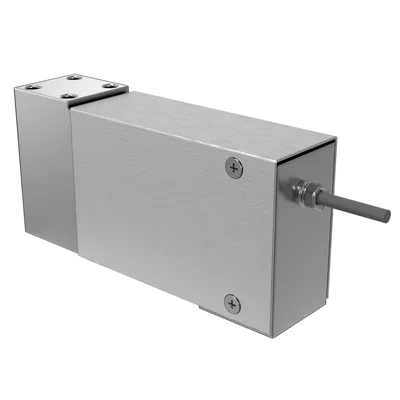

60048 Single Point Load Cell
FEATURES
• Rated capacities of 25 to 1000 pounds
• Constructed of alloy steel, stainless steel
• Moment-compensated design for minimal sensitivity to moments induced by off-center loading
• Exceeds NIST H-44 requirements
• Provides optimum protection under adverse loading conditions
• Sensorgage™ sealed to IP67 standards
• Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G.
• Non-incendive ratings (without barriers)
APPLICATIONS
• Single-point platform scales
• Belt conveyor scales
• Bench and counting scales
• Checkweighing scales
• Hopper scales and netweighing
| SPECIFICATIONS | |||
| PARAMETER | VALUE | UNIT | |
| Rated capacity—R.C. (Emax) | 25, 50, 100, 200, 400, 500, 1000 | lbs | |
| NTEP/OIML accuracy class | Non-Approved | ||
| Rated output-R.O. | 2.0 | mV/V | |
| Rated output tolerance | +0.25 … –10% | ±% mV/V | |
| Zero balance | 1.0 | ±% FSO | |
| Combined error | 0.03 | ±% FSO | |
| Non-repeatability | 0.01 | ±% FSO | |
| Creep error (20 minutes) | 0.03 | ±% FSO | |
| Temperature effect on zero | 0.0015 | ±% FSO/°F | |
| Temperature effect on output | 0.0008 | ±% of load/°F | |
| Compensated temperature range | 14 to 104 (–10 to 40) | °F (°C) | |
| Operating temperature range | 0 to 150 (–18 to 65) | °F (°C) | |
| Storage temperature range | –60 to 185 (–50 to 85) | °F (°C) | |
| Sideload rejection ratio | 500:1 | ||
| Safe sideload | 30 | % of R.C. | |
| Maximum safe central overload | 150 | % of R.C. | |
| Ultimate central overload | 300 | % of R.C. | |
| Excitation, recommended | 10 | VDC or VAC RMS | |
| Excitation, maximum | 15 | VDC or VAC RMS | |
| Input impedance | 380–450 | Ω | |
| Output impedance | 349–355 | Ω | |
| Insulation resistance at 50 VDC | >1000 | MΩ | |
| Material | Alloy steel, stainless steel | ||
| Environmental protection | IP67 | ||
| Moment compensation | 25–200 lbs | 400–1000 lbs | |
| Moment sensitivity | 0.070 | 0.050 | ±% of load/inch |
| Maximum moment | 10 x capacity | 15000 | lbs-inches |
| Platform size | 20 x 20 | 30 x 30 | inches |
FSO—Full Scale Output
All specifications subject to change without notice.
CERTIFICATION MARKINGS
FM Approval markings (USA and Canada)
IS Class I, II, III, Division 1, Groups A, B, C, D, E, F and G; NI Class I, Division 2, Groups A, B, C, and D,
DIP, Class II, III, Division 2, Groups F and G;
T4;
Ta = -25°C to +66°C
