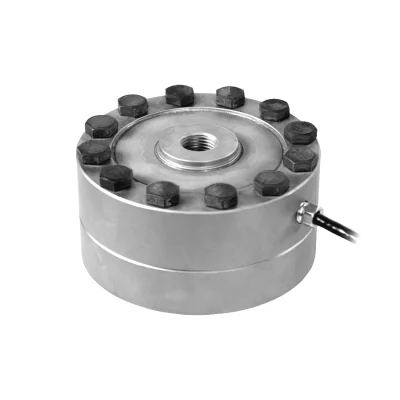

98001 Low Profile Universal Load Cell
FEATURES
• Capacity: 0.5–100 t
• Alloy steel construction
• Universal load cell
• Integrated overload protection (in compression)
• Tension and compression loading
• Optional
– Model 98005 without base mounting plate (for compression applications only)
– Metric and imperial threads
APPLICATIONS
• Universal testing machines
| SPECIFICATIONS | ||
| PARAMETER | VALUE | UNIT |
| Rated output—R.O. | 2.0 | mV/V |
| Rated output tolerance | 10 | ±% FSO |
| Zero balance | 1 | ±% FSO |
| Combined error | <0.10 | ±% FSO |
| Non-linearity | <0.050 | ±% FSO |
| Hysteresis | <0.050 | ±% FSO |
| Non-repeatability | <0.020 | ±% FSO |
| Creep error (30 minutes) | <0.002 | ±% FSO |
| Temperature effect on zero | <0.001 | ± %/°C |
| Temperature effect on output | 0.001 | ± %/°C |
| Operating temperature range | –20 to +70 | °C |
| Maximum safe central overload | 150 | % FSO |
| Ultimate central overload | 300 | % FSO |
| Excitation, recommended | 10 | VDC |
| Excitation, maximum | 15 | VDC |
| Input impedance | 699–750 | Ω |
| Output impedance | 699–750 | Ω |
| Insulation resistance at 50 VDC | >1000 | MΩ |
| Material | Alloy steel with electroless nickel-plated | |
| Environmental protection | IP67 | |

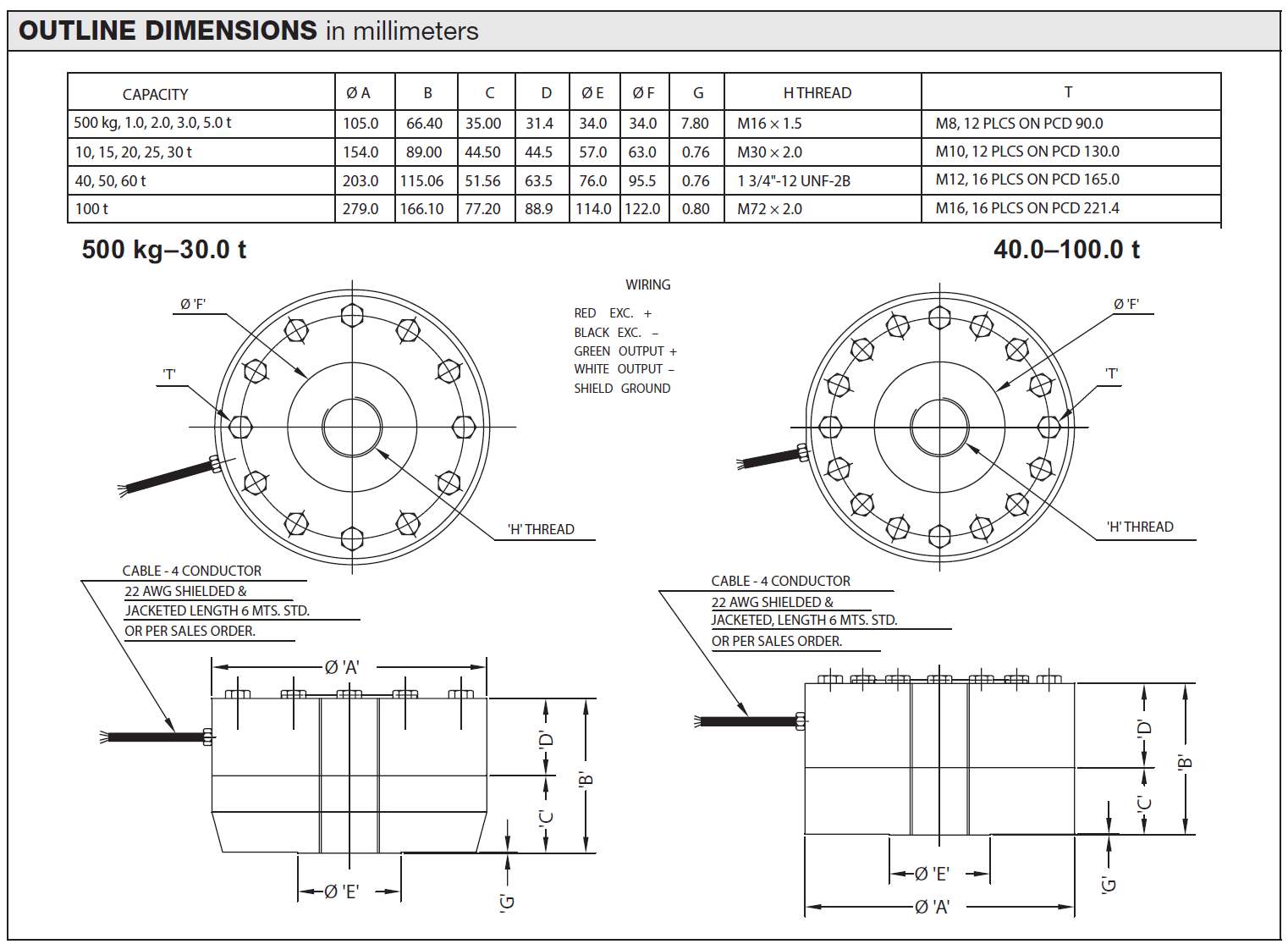

Speciications also apply for optional Model 98005 (for compression only)
All speciications subject to change without notice.
