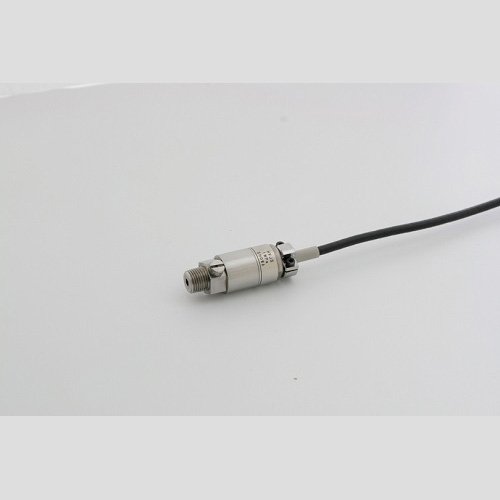

Description
Models
HVJS-1MPA, HVJS-2MPA, HVJS-5MPA, HVJS-10MPA, HVJS-20MPA, HVJS-50MPA
Features
- Compact and lightweight (40 g, excluding cable)
- High-temperature resistant (up to 150℃)
- Excellent corrosion resistance due to stainless steel used in the pressure section
- Accuracy class: 0.5% RO

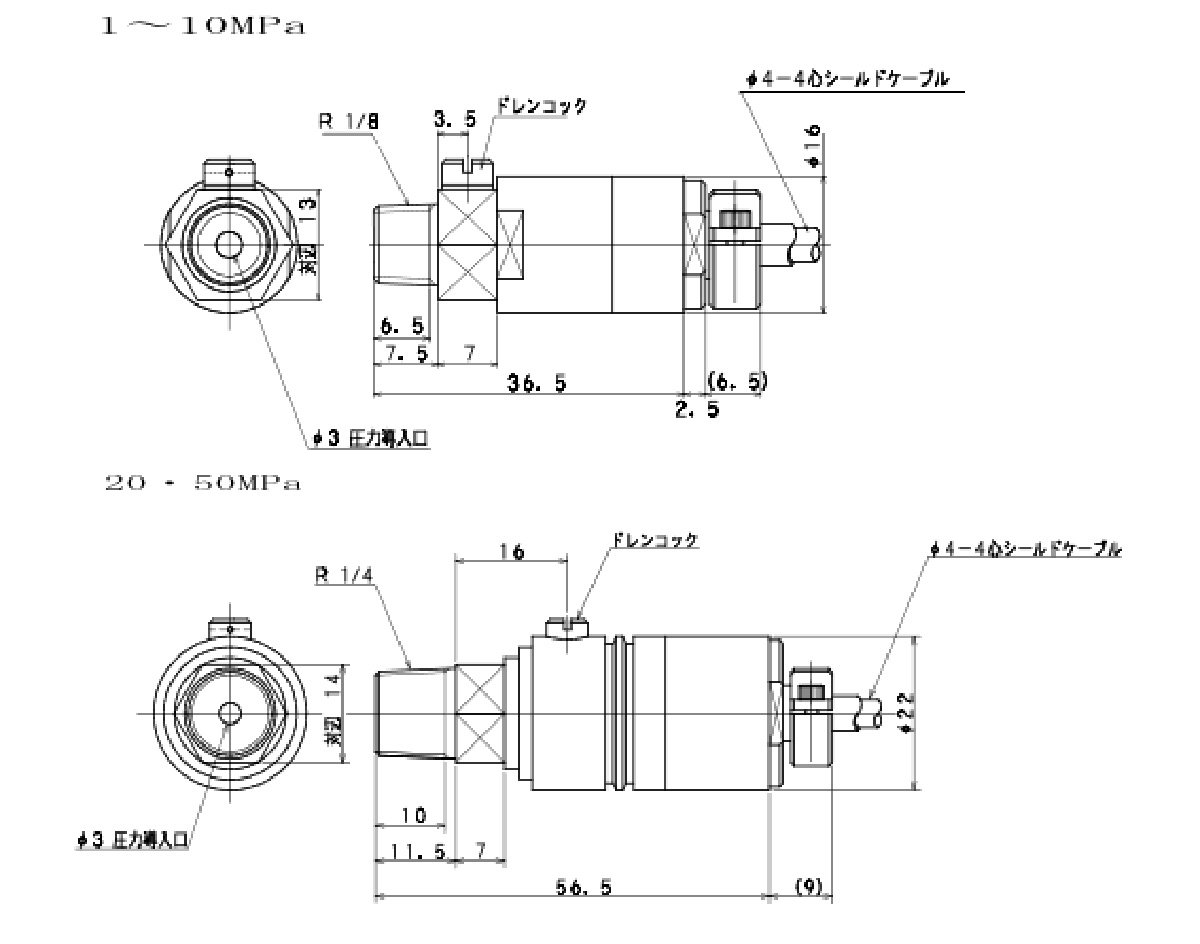

Dimensions
Specifications
| Item | Specification |
|---|---|
| Safe Overload | 120% RC |
| Rated Output | 1.0 mV/V (1 MPa) 1.5 mV/V (2 MPa ~ 50 MPa) |
| Linearity | 0.5% RO |
| Hysteresis | 0.5% RO |
| Repeatability | 0.3% RO |
| Recommended Excitation Voltage | Up to 4 V |
| Maximum Excitation Voltage | 6 V |
| Input Resistance | 370 Ω |
| Output Resistance | 350 Ω |
| Compensated Temperature Range | -10 ~ 150 ℃ |
| Operating Temperature Range | -20 ~ 165 ℃ |
| Temp. Effect on Zero | 0.008% RO/℃ |
| Temp. Effect on Output | 0.01% / ℃ |
| Cable | Φ4 mm, 4-core shielded, heat-resistant cable, 5 m, with connector at the end |
| Connector | Plug / PRC03-12A10-7M |
