Description
Models
HVS-500KPA, HVS-1MPA, HVS-2MPA, HVS-5MPA, HVS-10MPA, HVS-20MPA, HVS-25MPA, HVS-30MPA, HVS-50MPA
Features
- High-precision, high-stability type
- Pressure inlet type, hermetically sealed structure
- All stainless steel construction
- Accuracy class: 0.15% RO (except for some rated capacities)
- Ideal for high-precision hydraulic detection in testing machines and similar applications

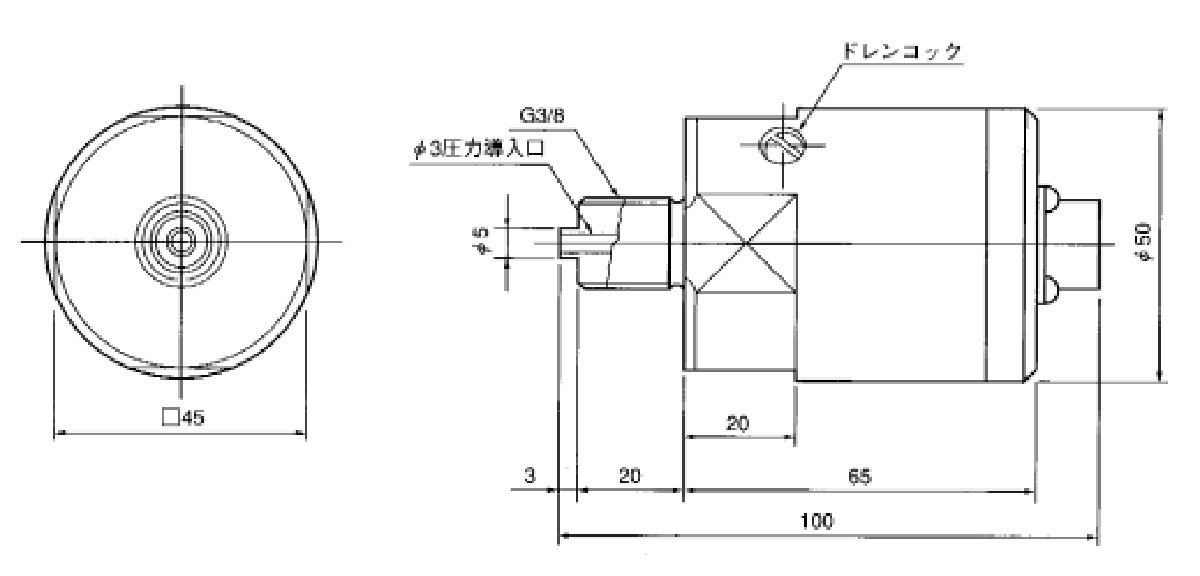

Dimensions
Specifications
| Item | Specification |
|---|---|
| Safe Overload | 120% RC |
| Rated Output | 1.0 mV/V ±1% (500 kPa, 1 MPa) 1.5 mV/V ±1% (2 MPa ~ 50 MPa) |
| Linearity | 0.3% RO (500 kPa, 1 MPa) 0.15% RO (2 MPa ~ 50 MPa) |
| Hysteresis | 0.3% RO (500 kPa, 1 MPa) 0.15% RO (2 MPa ~ 50 MPa) |
| Repeatability | 0.2% RO (500 kPa, 1 MPa) 0.1% RO (2 MPa ~ 50 MPa) |
| Recommended Excitation Voltage | Up to 10 V |
| Maximum Excitation Voltage | 15 V |
| Input Resistance | 350 Ω |
| Output Resistance | 350 Ω |
| Compensated Temperature Range | -10 ~ 60 ℃ |
| Operating Temperature Range | -20 ~ 80 ℃ |
| Temp. Effect on Zero | 0.01% RO/℃ (500 kPa, 1 MPa) 0.005% RO/℃ (2 MPa ~ 50 MPa) |
| Temp. Effect on Output | 0.01% / ℃ |
| Connector | Receptacle / PRC03-21A10-7F |
| Accessory Cable | LA-5 |
