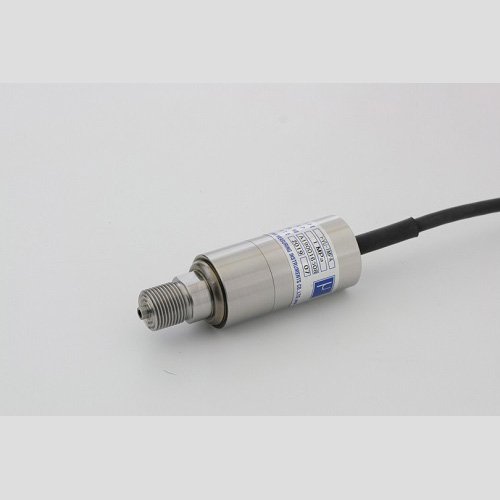

Description
Models
HVU-1MPA, HVU-2MPA, HVU-5MPA, HVU-10MPA, HVU-20MPA, HVU-50MPA
Features
- General-purpose, high-stability type
- Pressure inlet type, hermetically sealed structure
- All stainless steel construction
- Accuracy class: 0.3% RO (except for some rated capacities)
- Standard direct cable; can be changed to NDIS or waterproof connector type (optional)

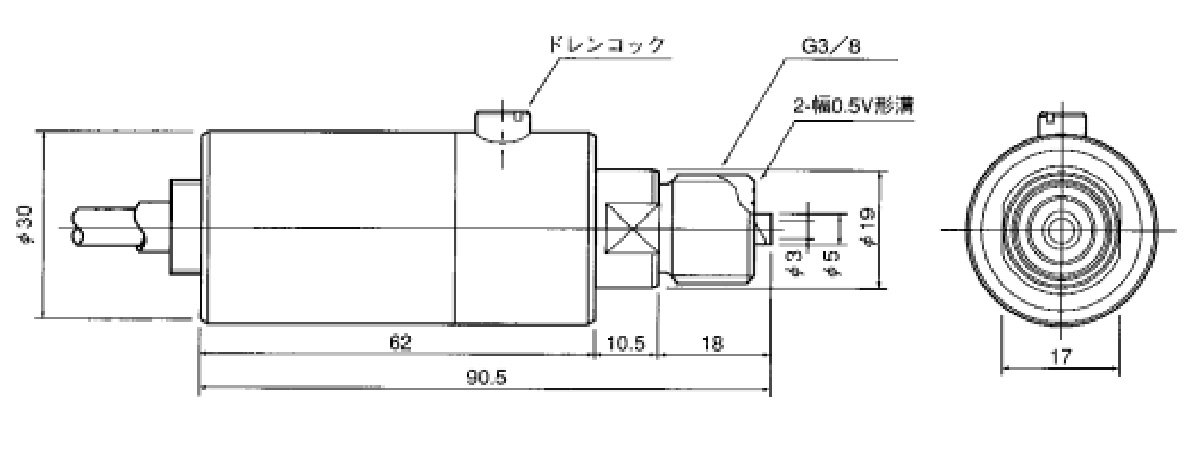

Dimensions
Specifications
| Item | Specification |
|---|---|
| Safe Overload | 120% RC |
| Rated Output | 1.5 mV/V ±1% (1 MPa) 2.0 mV/V ±1% (2 MPa ~ 50 MPa) |
| Linearity | 0.5% RO (1 MPa) 0.3% RO (2 MPa ~ 50 MPa) |
| Hysteresis | 0.5% RO (1 MPa) 0.3% RO (2 MPa ~ 50 MPa) |
| Repeatability | 0.3% RO (1 MPa) 0.2% RO (2 MPa ~ 50 MPa) |
| Recommended Excitation Voltage | Up to 10 V |
| Maximum Excitation Voltage | 15 V |
| Input Resistance | 350 Ω |
| Output Resistance | 350 Ω |
| Compensated Temperature Range | -10 ~ 60 ℃ |
| Operating Temperature Range | -20 ~ 80 ℃ |
| Temp. Effect on Zero | 0.03% RO/℃ (1 MPa) 0.02% RO/℃ (2 MPa ~ 50 MPa) |
| Temp. Effect on Output | 0.05% / ℃ |
| Cable | Φ6 mm, 4-core shielded, 0.3 m, with connector at the end |
| Connector | Jack / PRC03-32A10-7F |
| Accessory Cable | LA-5 |
