Description
Models
MDF-2KNC, MDF-4KNC, MDF-6KNC, MDF-10KNC, MDF-20KNC
Features
- Wind tunnel testing equipment
- Driver’s seat simulation
- Tire testing equipment
- Spring evaluation test devices
- Robotics, and more

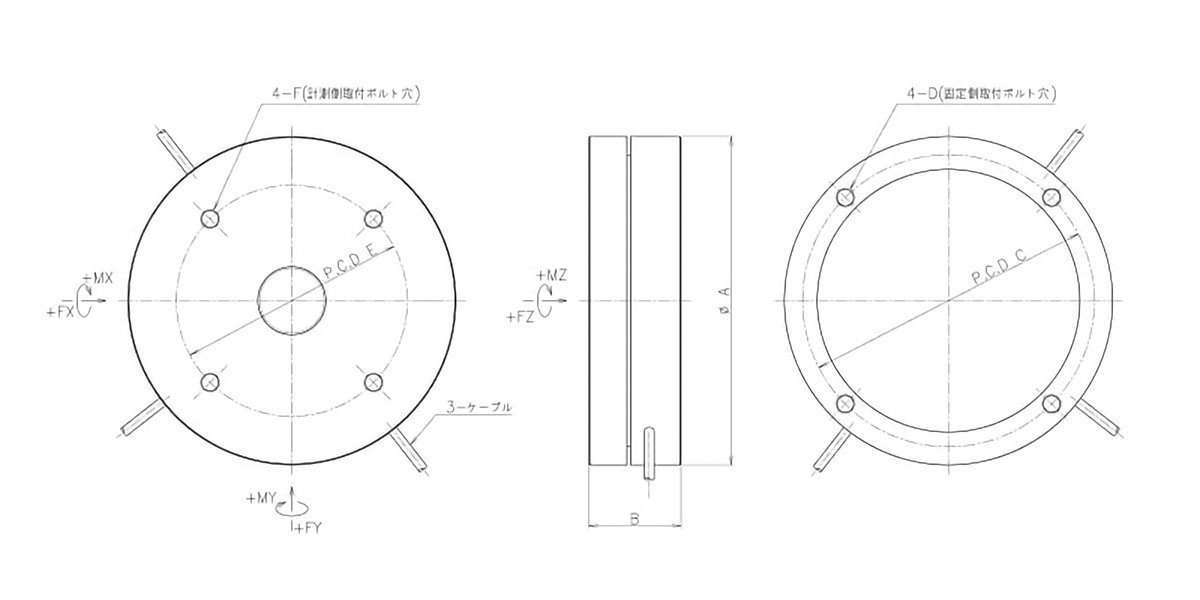

Dimensions
| 형식명 | 역계 분력(N) | 모멘트계 분력(N・m) | 치수(mm) | 정격 출력(mV/V) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fx | Fy | Fz | Mx | My | Mz | ΦA | B | ΦC | D | ΦE | F | Fx | Fy | Fz | Mx | My | Mz | |
| MDF-2KNC | 1000 | 1000 | 2000년 | 30 | 30 | 65 | 125 | 32 | 110 | M6 | 85 | M6 | 0.9 | 0.9 | 1.8 | 1.4 | 1.4 | 1.4 |
| MDF-4KNC | 2000년 | 2000년 | 4000 | 60 | 60 | 130 | 125 | 32 | 110 | M6 | 85 | M6 | 0.7 | 0.7 | 1.2 | 0.9 | 0.9 | 1.2 |
| MDF-6KNC | 3000 | 3000 | 6000 | 100 | 100 | 200 | 135 | 38 | 120 | M8 | 95 | M8 | 0.6 | 0.6 | 1.1 | 0.9 | 0.9 | 1.0 |
| MDF-10KNC | 5000 | 5000 | 10000 | 170 | 170 | 350 | 175 | 42 | 160 | M8 | 130 | M8 | 0.7 | 0.7 | 1.3 | 0.8 | 0.8 | 0.9 |
| MDF-20KNC | 10000 | 10000 | 20000 | 250 | 250 | 500 | 140 | 44 | 120 | M10 | 100 | M10 | 0.7 | 0.7 | 1.5 | 0.9 | 0.9 | 1.2 |
Specifications
| Item | Unit | Specification |
|---|---|---|
| Safe Overload | %RC | 150% |
| Ultimate Overload | %RC | 200% |
| Linearity | %RO | 0.4% |
| Hysteresis | %RO | 0.4% |
| Recommended Excitation | V | ≤10V |
| Max Excitation | V | 15V |
| Input Resistance | Ω | 400 Ω |
| Output Resistance | Ω | 350 Ω |
| Compensated Temp. Range | ℃ | 0 ~ 40℃ |
| Operating Temp. Range | ℃ | -10 ~ 50℃ |
| Temp. Effect on Zero | %RO/℃ | 0.02% |
| Temp. Effect on Output | %/℃ | 0.05% |
| Cross Talk | % | Force (F): ≤1.5% of other force Moment (M): ≤2.5% of other force |
| Cable | — | Φ3.6 mm, 8-core shielded, 3 m, tip exposed |
