Description
Models
SAL-20MS, SAL-50MS, SAL-100MS, SAL-200MS
Features
- Capable of measuring static, dynamic, and shock acceleration
- Compact, high-response type
- Accuracy class: 1% RO

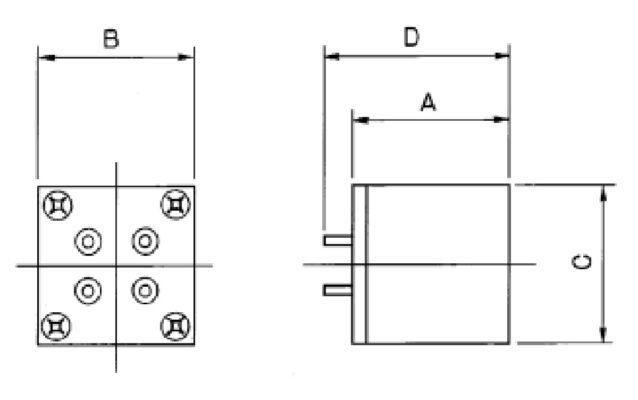

Dimensions
| Model Name | Rated Capacity | A | B | C | D | Natural Frequency | Response Frequency | Mass |
|---|---|---|---|---|---|---|---|---|
| SAL-20MS | ±20 m/s² (2.039 G) | 19 | 16 | 16 | 22 | 50 Hz | DC ~ 36 Hz | 20 g |
| SAL-50MS | ±50 m/s² (5.099 G) | 16 | 16 | 16 | 19 | 105 Hz | DC ~ 80 Hz | 17 g |
| SAL-100MS | ±100 m/s² (10.20 G) | 16 | 16 | 16 | 19 | 155 Hz | DC ~ 135 Hz | 17 g |
| SAL-200MS | ±200 m/s² (20.39 G) | 16 | 16 | 16 | 19 | 215 Hz | DC ~ 180 Hz | 17 g |
Specifications
| Item | Specification |
|---|---|
| Safe Overload | 130% RC |
| Rated Output | 1.1 mV/V ±30% |
| Linearity | 1% RO |
| Hysteresis | 1% RO |
| Lateral Sensitivity | ±3% RO |
| Damping Ratio | Approx. 0.7 (at 25℃) |
| Recommended Excitation Voltage | Up to 3V |
| Maximum Excitation Voltage | 4V |
| Input Resistance | 120 Ω |
| Output Resistance | 120 Ω |
| Operating Temperature Range | -10 ~ 60℃ |
| Temp. Effect on Zero | 0.1% RO/℃ |
| Cable | 4-core flat vinyl cable, 0.6 m ※1 |
