Description
Models
SK-100N, SK-200N, SK-500N
Features

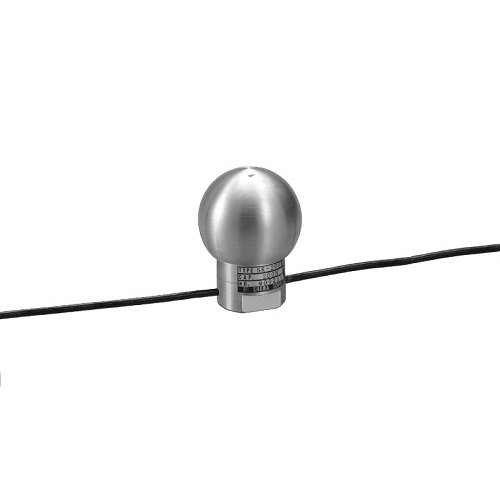

- 2-axis force sensor for detecting shift knob operating force
- Low overall height, does not affect the feel of operation
- Minimal cross-talk between force components (within 1%)
- Excellent linearity
- 3-axis models also available

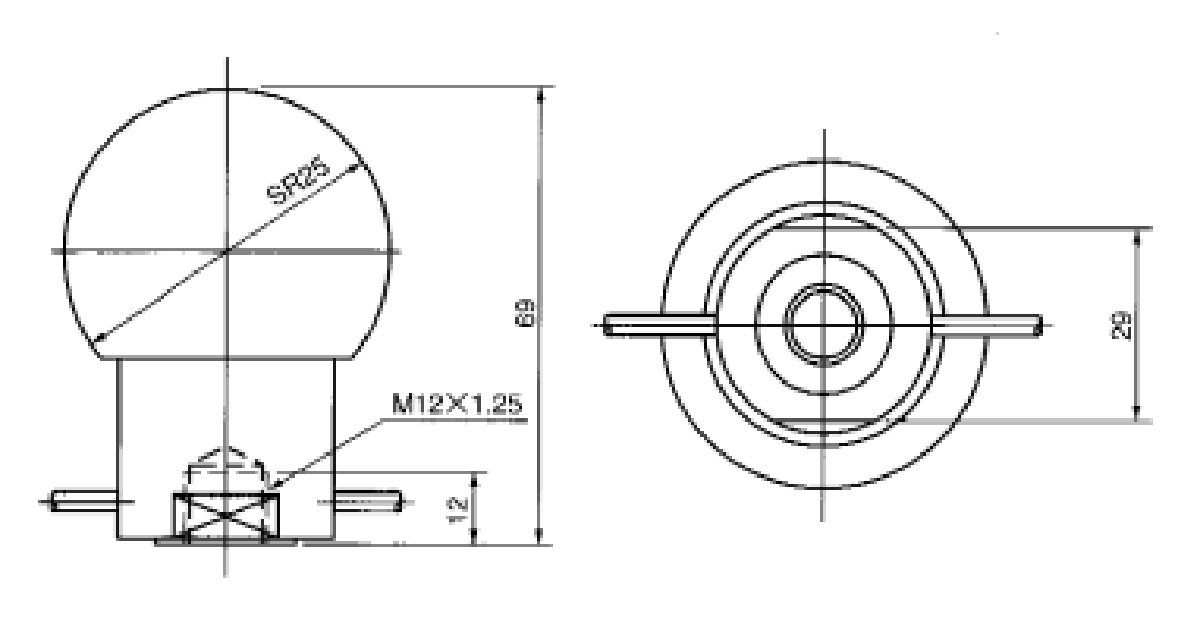

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Safe Overload | %RC | 150% |
| Rated Output | mV/V | 1 (nominal) |
| Linearity | %RO | 0.1% |
| Hysteresis | %RO | 0.1% |
| Repeatability | %RO | 0.05% |
| Recommended Excitation | V | ≤10V |
| Maximum Excitation | V | ≤15V |
| Input Resistance | Ω | 410 Ω |
| Output Resistance | Ω | 350 Ω |
| Compensated Temp. Range | ℃ | -10 ~ 40℃ |
| Operating Temp. Range | ℃ | -20 ~ 60℃ |
| Temp. Effect on Zero | %RO/℃ | 0.02% |
| Temp. Effect on Output | %/℃ | 0.02% |
| Cross Talk | %RO | ≤1% (between each force component) |
| Cable | — | Φ3 mm, 4-core shielded, 2 m, open end |
| Load Eccentricity Effect | %/cm | ≤0.2%/cm (within max. eccentricity of 2.5 cm) |
