Description
Models

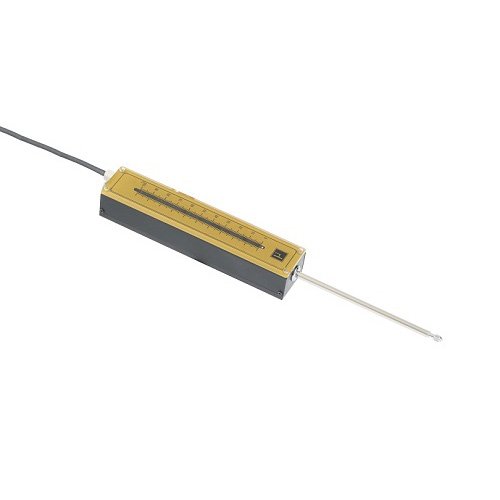

TCLB-30A, TCLB-50A, TCLB-100A, TCLB-200A
Features
- Sliding resistance type
- Includes scale plate
- Enables stable measurement
- Cable exits in the direction of operation for easy installation

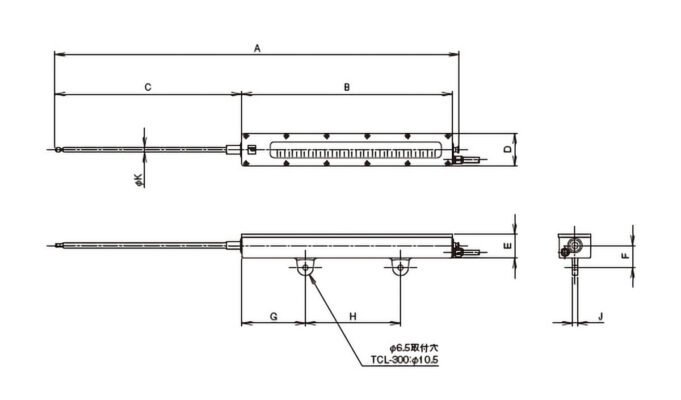

Dimensions
| Model Name | Rated Displacement | A | B | C | D | E | F | G | H | J | K | Reaction Force (N) Start/End | Mass |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TCLB-30A | 30 mm | 129.4 | 76 | 46.7 | 32 | 27 | 27 | 35 | – | 6 | 5 | 1.8 / 3.5 | 250 g |
| TCLB-50A | 50 mm | 169.4 | 96 | 66.7 | 32 | 27 | 27 | 40 | – | 6 | 5 | 1.9 / 3.5 | 280 g |
| TCLB-100A | 100 mm | 276.4 | 153 | 116.7 | 32 | 27 | 27 | 70 | – | 6 | 5 | 1.9 / 3.2 | 320 g |
| TCLB-200A | 200 mm | 510 | 266 | 235.5 | 41 | 30 | 28 | 80 | 120 | 6 | 6 | 3.5 / 8.0 | 630 g |
Specifications
| Item | Specification |
|---|---|
| Rated Output | 1.5 mV/V ±1% (A Series) |
| Linearity | 0.2% RO |
| Hysteresis | 0.2% RO |
| Repeatability | 0.1% RO |
| Recommended Excitation Voltage | Up to 10 V |
| Maximum Excitation Voltage | 12 V |
| Input Resistance | 350 Ω |
| Output Resistance | 350 Ω |
| Compensated Temperature Range | 0 ~ 50 ℃ |
| Operating Temperature Range | 0 ~ 60 ℃ |
| Temp. Effect on Zero | 0.02% RO/℃ |
| Temp. Effect on Output | 0.01% / ℃ |
| Cable | Φ4 mm, 4-core shielded, 0.3 m, with connector at the end (30~100 mm) Φ6 mm, 4-core shielded, 0.3 m, with connector at the end (200 mm) |
| Connector | Jack / PRC03-32A10-7F |
