Description
Models

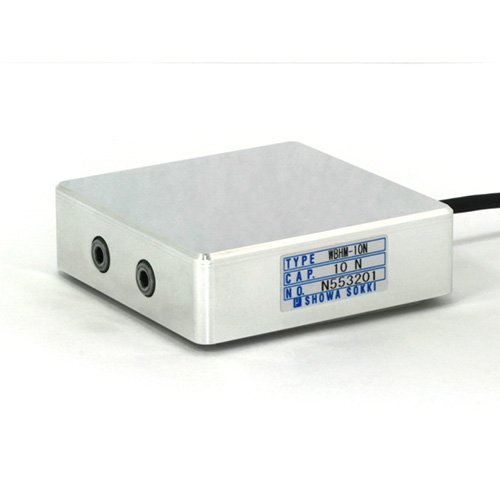

WBHM-10N, WBHM-20N, WBHM-50N
Features
- High accuracy achieved through a unique structure
- Slim design with a height of just 20 mm

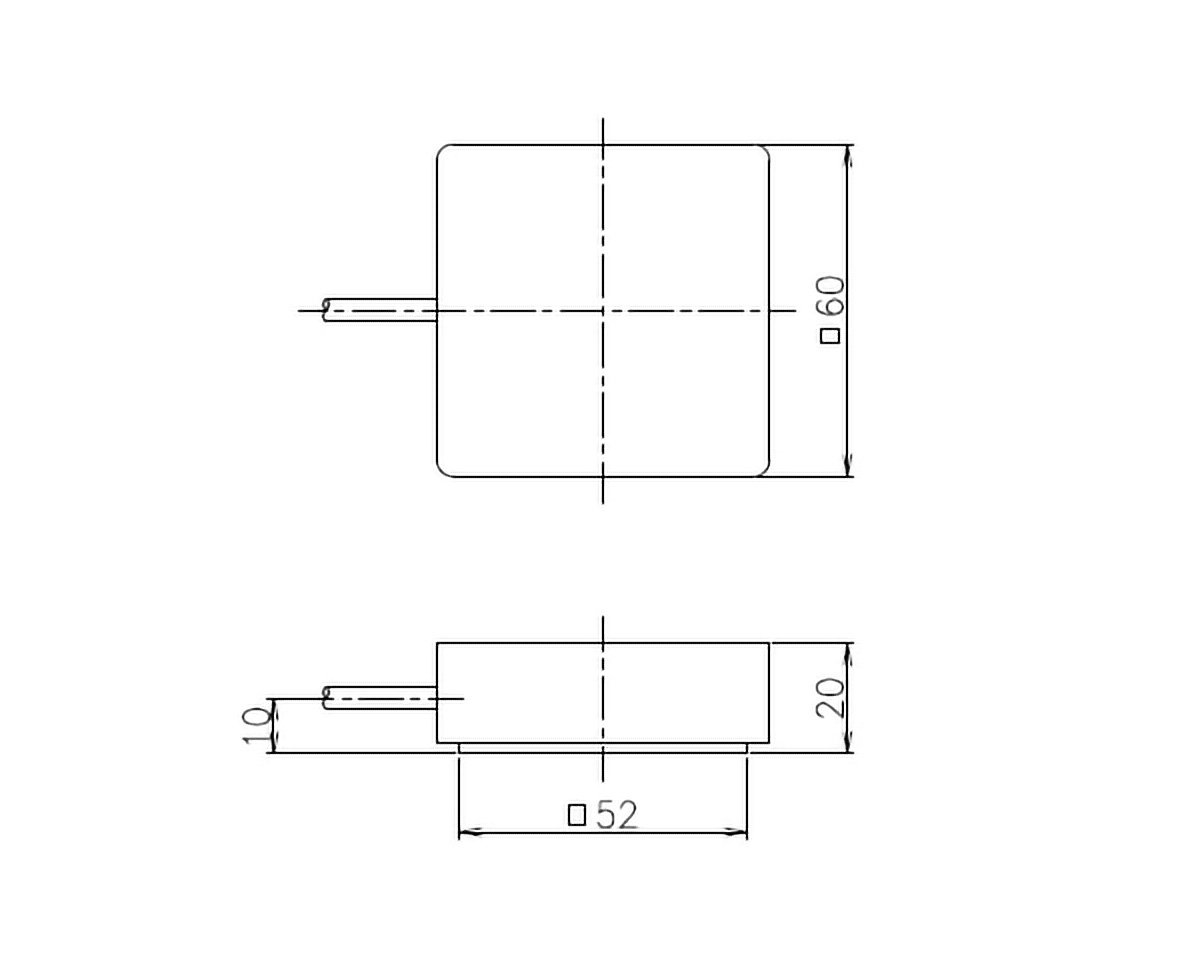

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Safe Overload | %RC | 150% RC |
| Rated Output | mV/V | 2 mV/V |
| Non-linearity | %RO | 0.02% RO |
| Hysteresis | %RO | 0.01% RO |
| Eccentric Load Error | %/cm | 0.02%/cm (within 3 cm) |
| Repeatability | %RO | 0.015% RO |
| Recommended Excitation Voltage | V | ≤ 7 V |
| Maximum Excitation Voltage | V | ≤ 10 V |
| Input Resistance | Ω | 410 Ω |
| Output Resistance | Ω | 350 Ω |
| Compensated Temp. Range | ℃ | -10 ~ 45 ℃ |
| Operating Temp. Range | ℃ | -20 ~ 60 ℃ |
| Temp. Effect on Zero | %RO/℃ | 0.005% RO/℃ |
| Temp. Effect on Output | %/℃ | 0.005%/℃ |
| Cable | – | Φ4 mm – 4-core shielded, 1 m, connector attached |
| Connector | – | PRC03-12A10-7M |
