Description
Models

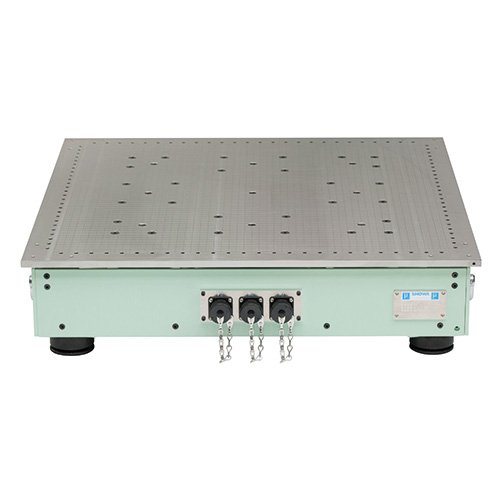

WME-500NC
Features
- A center of gravity position measurement device utilizing the structure of a focal-type 6-axis load cell.
- Thanks to the advantages of the focal-type design, the detection unit can be precisely centered, enabling more accurate measurement of the center of gravity position.
- We can propose dimensions and specifications tailored to your requirements.

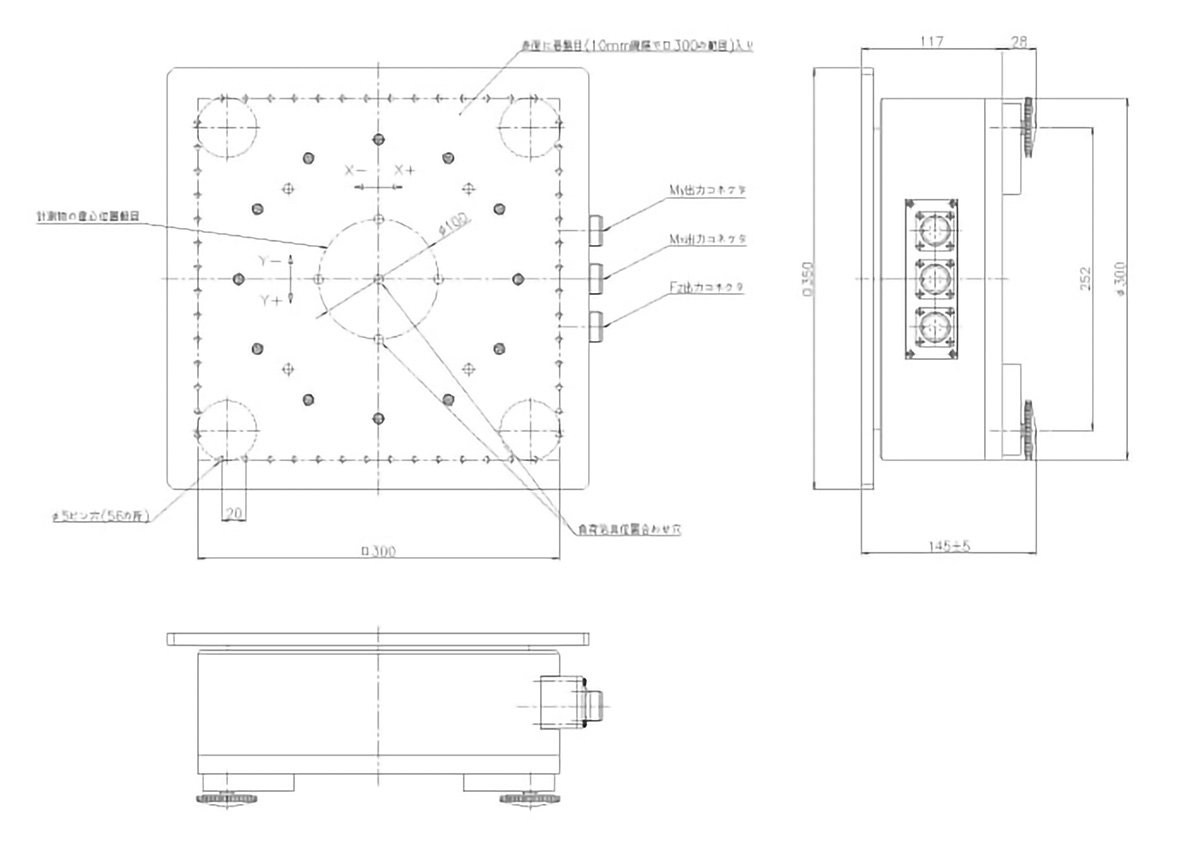

Dimensions
Specifications
| Specification | Standard |
|---|---|
| Model Name | WME-500NC |
| Measurement Mass Range | 5~50 kg |
| Platform Dimensions | 350×350 mm |
| Detection Unit Mass | 30 kg |
| Item | Specification |
| Indicator Min. Display | Weight: 1 g, Center of Gravity Position: 0.1 mm |
| Measurement Accuracy | X coordinate: ±0.5 mm, Y coordinate: ±0.5 mm (within measurement mass range) |
| Measuring Plane Selection | Selectable: XY plane, XZ plane, YZ plane |
| Communication Spec. | Baud rate: 19200 bps Character: 8 bit Stop bit: 1 bit Parity: Even Delimiter: CR |
| Data Storage | Format: CSV Contents: Measurement date/time, format, serial number, product origin, indicator value, mass, center coordinates from reference plate center, center coordinates from product origin |
| Settings | Average count (number of measurements per data point) Graph scale (±) setting Save directory path (CSV data) Interference correction setting |
| Supported OS | Windows 7, Windows 10 (.Net Framework 4.5 or higher) |
| Driver | USB-Serial conversion cable driver |
| USB | USB 2.0 |
| Power Supply | AC 100V, 50/60 Hz |
| Operating Temperature | -10 ~ 40 ℃ |
| Storage Temperature | -20 ~ 60 ℃ |
| Operating Humidity | 85% RH or less (no condensation) |
