Description
CS1210 REACTION TORQUE SENSOR – COLLAR FITTINGS
The CS1210 Series has been developed to measure torquein static applications. The mechanical design and gaugeplacement minimizes transverse effects.Fitted with metallic strain gauges in a Wheatstonebridge circuit, the CS1210 is providing excellenttemperature stability. For high-level output a model withintegrated amplifier is available.With a long standing experience as a designer andmanufacturer of sensors, TE CONNECTIVITY often workswith customers to design or customize sensors for specificuses and testing environments.On request, Instruction documents can be providedto ease the selection and use of our sensors and providehelpful tips.
STANDARD RANGES
| Parameter | 160 | 300 | 600 | 1.2k | 2.4k | 3.5k | 4.8k | 7k | 10k |
|---|---|---|---|---|---|---|---|---|---|
| Range (Nm, FS) | 160 | 300 | 600 | 1.2k | 2.4k | 3.5k | 4.8k | 7k | 10k |
| Range (lbf·ft, FS) | 128 | 240 | 480 | 960 | 1.92k | 2.8k | 3.84k | 5.6k | 8k |
| Stiffness (Nm/rad) | 3.5×10⁴ | 6×10⁴ | 2×10⁵ | 3.5×10⁵ | 1×10⁶ | 1.4×10⁶ | 2.3×10⁶ | 3.4×10⁶ | 5.7×10⁶ |
| Stiffness (lbf·ft/rad) | 2.4×10³ | 1.4×10⁴ | 1.4×10⁴ | 2.4×10⁴ | 6.9×10⁴ | 1×10⁵ | 1.6×10⁵ | 2.3×10⁵ | 3.9×10⁵ |
PERFORMANCE SPECIFICATIONS (typical values at temperature 23±3°C)
| Parameter | Specification | Units | Notes |
|---|---|---|---|
| Operating Temperature Range (OTR) | -20 to 80 | °C | (-4 to 176 °F) |
| Compensated Temperature Range (CTR) | 0 to 60 | °C | (32 to 140 °F) |
| Zero Shift in CTR | < 0.5% F.S. / 50 °C | — | [/100 °F] |
| Sensitivity Shift in CTR | < 1% of reading / 50 °C | — | [/100 °F] |
| Over-Range (Without Damage) | 1.5 × F.S. | — | — |
| Accuracy (Combined Non-Linearity & Hysteresis) | ±0.25% F.S. | — | — |
Electrical Characteristics
| Parameter | CS1210 | CS1210-A1 | CS1210-A2 |
|---|---|---|---|
| Supply Voltage | 1 to 10 Vdc (regulated) | 10 – 30 Vdc | ±15 Vdc (±12 to ±18 Vdc) |
| Sensitivity “FSO” | ±2 mV/V | ±2 V ±0.2 V | ±5 V ±0.2 V |
| Zero Offset | < ±1 mV | 2.5 V ±0.2 V | 0 V ±0.2 V |
| Input Impedance / Consumption | 350 to 700 Ω | < 50 mA | < 50 mA |
| Output Impedance | 350 to 700 Ω | 1 kΩ | 1 kΩ |
| Insulation under 50 Vdc | ≥ 100 MΩ | ≥ 100 MΩ | ≥ 100 MΩ |
Notes
1. Sensors are calibrated with 10Vdc power supply as standard.
2. Signal goes positive in CW strain with standard wiring configuration. Other signal output on request
3. Electrical Termination: Connector output including mate
4. Material: Body in stainless steel or aluminum alloy
5. Output impedance < 100Ω on request
6. CE conformance according to EN 61010-1, EN 50081-1, EN 50082-1

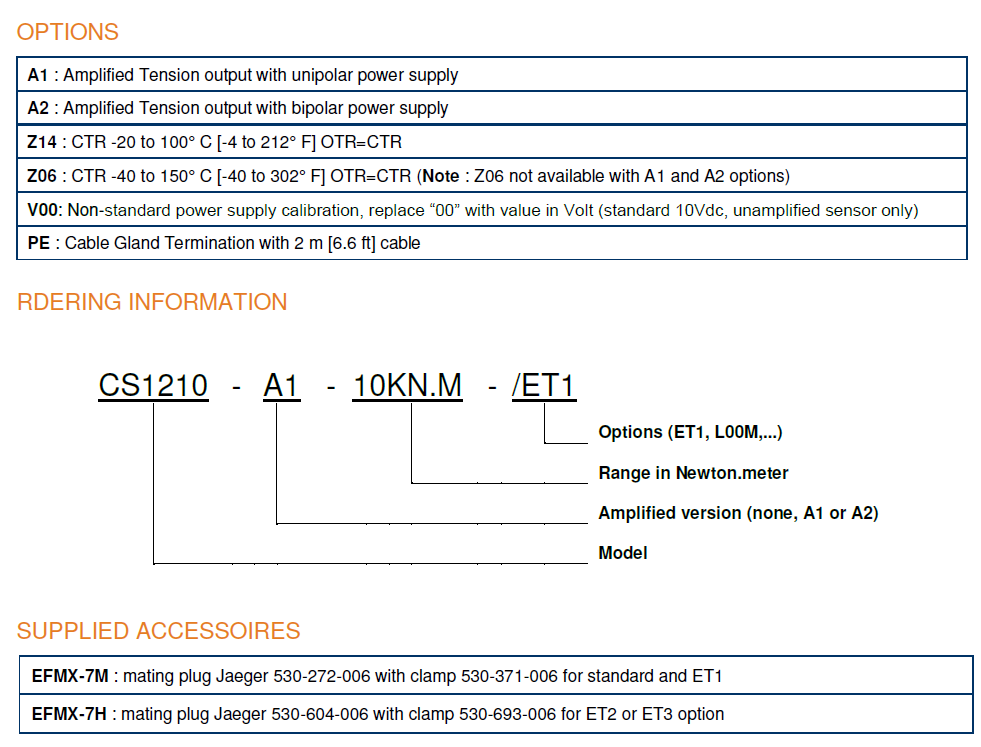

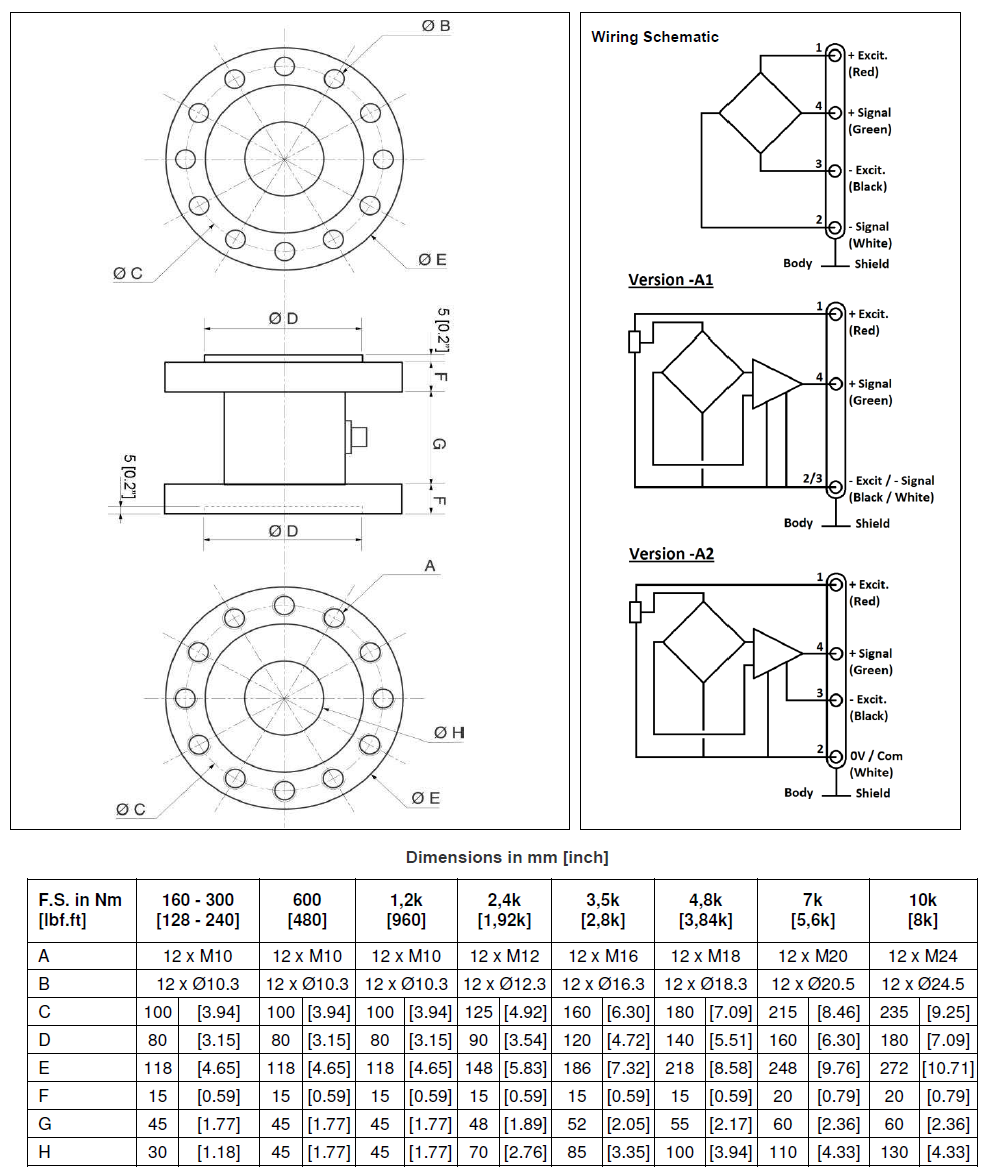

DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)
