Description

Models

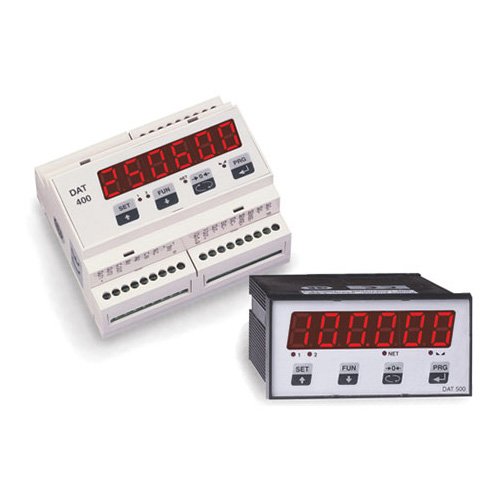

DAT400, DAT500

Features

 Configuration and calibration by computer
interface or via front panel keyboard.
 High resolution.
 Display 6 digit 14mm LED.
 2 optically-isolated logic Inputs.
 2 optically-isolated logic Outputs.
 Selectable Digital filtering.
 Auto zero and zero-tracking functions.
 10 point linearity compensation.
 Peak Hold function for dynamic measurement.
 Analog outputs: 0-5V DC, 0-10V DC, 0/20mA
and 4/20mA selectable over the entire
measuring range.
 Serial Outputs: RS-232, RS-422 or RS-485 with
MODBUS RTU protocol. Option: PROFIBUS or
DEVICENET (replace analog output).
 Up to 32 addressable units can be connected
point to point by using the RS-485 serial output.
 Protection RFI / EMI
 Enclosure: ABS plastic.

Dimensions

Specifications
