Description

Models

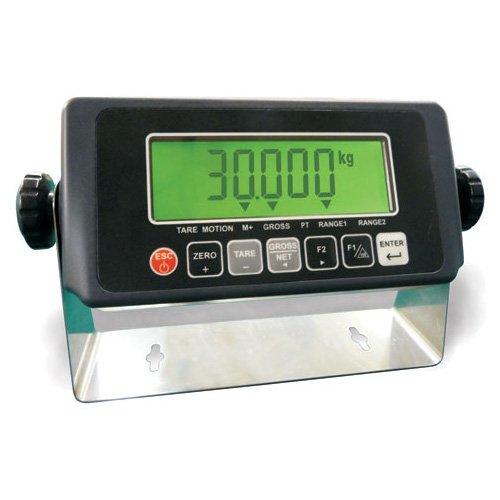

DP100

Features

 General purpose Weighing Indicator.
 Friendly configuration and calibration menu.
 High resolution: 20 bits A/D, 1 million internal
divisions, 120 readings/sec. (max.)
 Display 6 digits 25,4 mm LCD with LED
backlight.
 RS-232 serial port for PC or printer
connection.
 Load cell Excitation at 5 V DC, for up to 4 load
cells 350 Ω or 8 load cells 700 Ω.
 Adaptor: 9 V DC included.
 Battery: 5 units of AA size.
Battery life:
50 hours (1 load cell 350 Ω without backlight).
24 hours (4 load cells 350 Ω with backlight).
 Plastic enclosure with mounting kit.
 Multi-range: for a dual range and dual division
size.
 Animal weighing.
 Peak value (HOLD).
 Programmable keys (F1, F2, Enter + F2) to
assign to the following functions:
• Print
• Units kg/lb switch
• M+ (accumulation and print)
• MC (memory cleaning)
• Weight / Weight Accumulation /
Times Weight Accumulation Display
Switch.
• HR (high resolution switch)
• Input Pre-Tare value.

Dimensions

Specifications
